Water Separators
Water Separator is a separation device designed to remove water, moisture, and liquid contaminants from industrial fluids and air systems.
By using physical separation technologies such as centrifugal force, gravity separation, and filtration, Water Separator effectively separates unwanted water from the working medium to improve system efficiency and protect downstream equipment.
Water Separator is widely used in:
Compressed air systems
Marine piping systems
Fuel systems
Hydraulic systems
Cooling water systems
Industrial pipelines
Process equipment
Water contamination can reduce equipment performance, increase corrosion risk, and shorten service life. A reliable Water Separator helps maintain clean operating by continuously removing separated water from the system.
Overview
Working Principle of Water Separator
Water Separator works by separating water from the working medium according to differences in density, particle size, and physical characteristics.
The main separation methods include:
Centrifugal separation
Gravity separation
Coalescing separation
Filtration separation
When the contaminated fluid enters the separator, the internal structure changes the flow direction and reduces flow velocity.

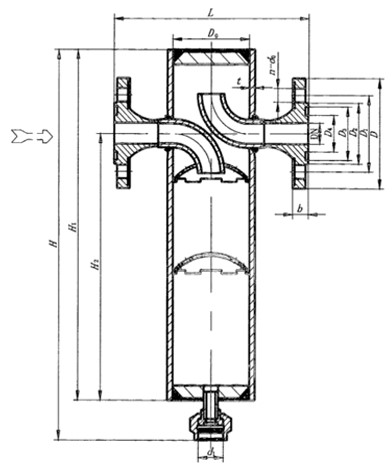

Main Components of Water Separator
| Component | Function |
|---|---|
| Separator Body | Provides pressure resistance and structural protection |
| Inlet Connection | Allows contaminated medium entry |
| Outlet Connection | Transfers separated clean medium |
| Separation Chamber | Provides space for water separation |
| Baffle Plate | Changes flow direction and improves separation efficiency |
| Filter Element | Removes fine particles and moisture |
| Coalescing Element | Combines small water droplets into larger droplets |
| Collection Chamber | Stores separated water |
| Drain Valve | Removes accumulated water |
| Cover Assembly | Allows maintenance and inspection |
Applicable Standards of Water Separator
| Standard Category | Applicable Standards |
|---|---|
| Pressure Equipment Design | ASME Section VIII, EN 13445 |
| Pressure Equipment Safety | PED 2014/68/EU |
| Material Standards | ASTM, EN Standards |
| Welding Requirements | ASME Section IX, EN ISO 15614 |
| Quality Management | ISO 9001 |
| Pressure Testing | ISO 5208, API 598 |
| Industrial Equipment Requirements | ISO Standards |
Pressure Test of Water Separator
| Test Item | Description |
|---|---|
| Hydrostatic Test | Verifies pressure resistance and structural strength |
| Leakage Test | Checks sealing performance |
| Shell Test | Confirms pressure-containing body reliability |
| Welding Inspection | Ensures welded joints quality |
| Material Inspection | Confirms material specification |
| Final Inspection | Ensures product quality before shipment |
Material Selection of Water Separator
| Material | Description | Typical Applications |
|---|---|---|
| Carbon Steel | High strength, durable, and cost-effective material for general industrial applications | Compressed air systems, industrial pipelines, general water separation |
| Stainless Steel | Excellent corrosion resistance and suitable for harsh environments | Marine systems, offshore equipment, chemical and food industries |
| Aluminum Alloy | Lightweight material with good corrosion resistance | Compact compressed air systems, portable equipment |
| Cast Iron | Strong mechanical performance and economical solution | Industrial water systems, low-cost separation equipment |
| Brass | Good corrosion resistance and excellent machinability | Small separators, marine auxiliary systems, fittings |
| Duplex Stainless Steel | High corrosion resistance and strength | Seawater systems, offshore applications, aggressive environments |
