Tank Deck Control
Tank Deck Control is a marine control system installed on ship tank decks for remote operation and management of valves and tank-related equipment.
The system provides a centralized operating location on the deck, allowing crew members to control cargo tank valves, ballast valves, and other marine piping equipment safely and efficiently.
Tank Deck Control is mainly used in:
Oil tanker cargo systems
Chemical tanker systems
Fuel oil tank systems
Ballast tank systems
Marine liquid handling systems
By connecting with remote valve operating mechanisms, Tank Deck Control enables operators to control valves located inside cargo areas or other restricted locations without direct access.
Overview
Working Principle of Tank Deck Control

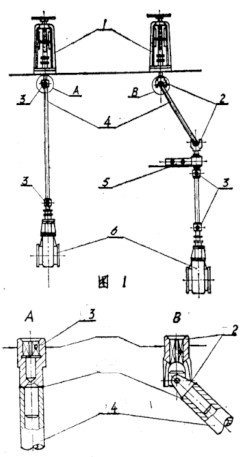

Tank Deck Control works by transmitting operation commands from the tank deck control position to remote valves or tank equipment.
The system can operate through:
Mechanical shaft transmission
Gear operating mechanisms
Hydraulic control systems
Cable remote control systems
Operating Process:
Operator operates the control handle or handwheel on the tank deck.
The control mechanism transfers the operating force.
The remote valve actuator receives the movement.
Cargo, ballast, or tank valves open or close.
Valve position can be monitored through indication devices.
Main Components of Tank Deck Control
| Component | Function |
|---|---|
| Control Stand | Provides operating position on tank deck |
| Handwheel / Lever | Manual operation input |
| Transmission Shaft | Transfers mechanical movement |
| Gear Unit | Provides movement conversion |
| Valve Operating Mechanism | Controls remote valves |
| Position Indicator | Shows valve opening status |
| Mounting Base | Fixes equipment on deck |
| Protective Cover | Prevents corrosion and damage |
| Connection Assembly | Links control unit with valves |
Applicable Standards of Tank Deck Control
| Standard Category | Applicable Standards |
|---|---|
| Marine Equipment Standards | CB/T Marine Equipment Standards |
| Shipbuilding Standards | GB / CB Standards |
| Oil Tanker Requirements | IMO MARPOL / SOLAS Requirements |
| Cargo Control System | Marine Cargo Handling Requirements |
| Valve Remote Control System | IMO Ship Safety Requirements |
| Material Standards | ASTM / JIS / GB / EN Standards |
| Classification Requirements | CCS, ABS, DNV, LR, ClassNK |
Material Selection of Tank Deck Control
| Material | Features | Applications |
|---|---|---|
| Stainless Steel | Excellent corrosion resistance | Chemical tankers, offshore |
| Cast Steel | High strength and durability | Oil tanker systems |
| Carbon Steel | Strong and economical | General cargo vessels |
| Aluminum Alloy | Lightweight design | Special marine equipment |
| Bronze | Corrosion-resistant components | Marine mechanical parts |
Common Material Standards
| Material | Standard |
|---|---|
| Stainless Steel | ASTM A351 CF8M |
| Cast Steel | ASTM A216 WCB |
| Carbon Steel | ASTM A36 |
| Aluminum Alloy | ASTM B209 |
| Bronze | ASTM B62 |
Technical Specifications of Tank Deck Control
| Item | Specification |
|---|---|
| Product Name | Tank Deck Control |
| Type | Marine Tank Remote Control System |
| Function | Tank Valve Operation and Control |
| Installation Location | Tank Deck / Main Deck |
| Applicable Vessel | Oil Tanker, Chemical Tanker, Cargo Ship |
| Control Method | Mechanical / Hydraulic |
| Controlled Equipment | Cargo Valve, Ballast Valve, Tank Valve |
| Transmission Type | Shaft / Gear / Hydraulic |
| Material | Stainless Steel / Cast Steel / Carbon Steel |
| Surface Treatment | Marine Anti-corrosion Coating |
Performance Test of Tank Deck Control
| Test Item | Description |
|---|---|
| Functional Test | Checks complete control operation |
| Transmission Test | Verifies movement transfer accuracy |
| Load Test | Confirms mechanical strength |
| Operation Test | Ensures smooth control performance |
| Corrosion Inspection | Checks protective coating |
| Installation Inspection | Confirms compatibility with vessel system |
Advantages of Tank Deck Control
| Feature | Benefit |
|---|---|
| Centralized Control | Simplifies tank operation |
| Remote Valve Operation | Improves crew safety |
| Tanker-specific Design | Suitable for cargo systems |
| Reliable Transmission | Ensures accurate valve control |
| Marine Protection | Suitable for long-term operation |
Typical Applications
| Application | Function |
|---|---|
| Oil Tanker Cargo Tank | Controls cargo valves |
| Chemical Tanker | Operates liquid cargo systems |
| Fuel Oil Tank | Controls fuel valves |
| Ballast Tank | Operates ballast valves |
| Loading System | Controls cargo flow |
| Unloading System | Supports discharge operation |
