Working Principle

Suction check valve (also known as marine foot valve) is installed at the submerged end of pump suction pipeline.

When pump starts: Negative pressure opens disc, medium flows into pipeline.

When pump stops: Gravity & back‑pressure close the disc automatically, keeps suction line fully primed, avoids pump dry‑running and repeated manual priming. Optional built‑in filter mesh large debris to protect pump impeller.

Product Features:

Main Materials: Valve body available in cast iron,  brass, or stainless steel to suit different needs. For More informaion, please CLICK

Anti-Backflow Design: The suction check valve effectively prevents media backflow, ensuring system safety.

Option with Filter: Optional filter to remove impurities and protect the piping system.

Applications:

Marine Systems: Designed specifically for marine applications, suitable for various marine piping systems.

Industrial Piping: Used in industrial pipelines to prevent media backflow and ensure process safety.

Water Supply Systems: Suitable for water supply systems, preventing water hammer and backflow problems.

Installation & Maintenance

Installation: Mount vertically at suction pipe end, fully submerged. Follow flow marking on valve body.

Maintenance: Regularly inspect & clean strainer screen to avoid blockage. Check sealing performance periodically.

Storage: Store in dry indoor environment, seal both ends to prevent dust entering cavity.

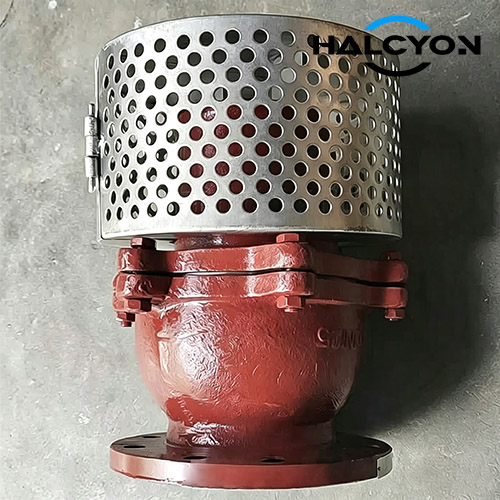

Image of Suction Check Valve(with screen)
