Single-ended Male Thread Needle Valve
Materials of main parts
Body Material: Cast Bronze
Plug Material: Bronze
Stem: Brass
Bonnet:Cast Bronze
Overview
Application:This Single-ended Male Thread Needle Valve is designed for marine applications involving oil, gas, water, saturated steam.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | BONNET | BRONZE |
4 | STEM | BRASS |
Technical Specifications:
Model:Single-ended Male Thread Needle Valve
Nominal Diameter:DN6~DN12
Connection Type: male thread at the inlet and a female ring joint nut connection at the outlet

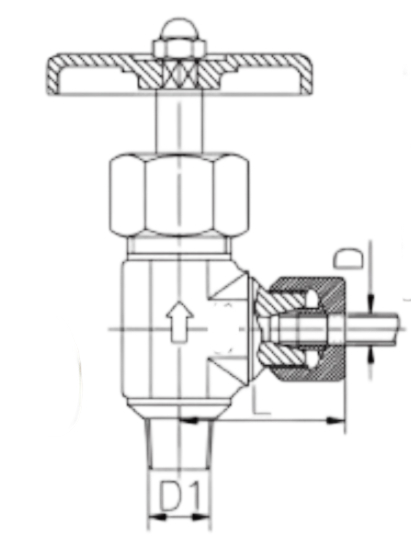

Dimensions Specification:
D1: Inner Diameter
L: Length
D: Nominal Diameter
H: Height
DIMENSIONS(Unit:mm)
D | IMPA | D1 | L |
|---|---|---|---|
6 | 752116 | 1/8" | 37 |
6 | 752117 | 1/4" | 37 |
8 | 752118 | 1/4" | 37 |
10 | 752119 | 3/8" | 37 |
12 | 752120 | 1/2" | 45 |
14 | 752121 | 1/2" | 45 |
