Marine Deck Floor Drain
Marine Deck Floor Drain is a drainage fitting designed for collecting and removing water from ship deck floors, accommodation areas, machinery spaces, and offshore structures.
Installed at low points of deck surfaces, the floor drain collects rainwater, seawater, cleaning water, and other liquids through a drain cover or strainer, then transfers them into the vessel drainage system.
Marine Deck Floor Drain is commonly used in:
Accommodation areas
Engine rooms
Machinery spaces
Galley areas
Passenger ship decks
Working decks
Offshore platforms
Compared with general deck drains, Marine Deck Floor Drain focuses on surface water collection and daily drainage management.
Overview
Working Principle of Marine Deck Floor Drain
Marine Deck Floor Drain works by collecting water from the deck surface and transferring it into the ship drainage pipeline system.
Operating Process:
Water flows toward the lowest point of the deck.
Liquid enters through the drain cover or strainer.
The drain body filters large particles and debris.
Water flows through the outlet connection into drainage pipes.
The drainage system discharges water safely overboard or into a collection tank.

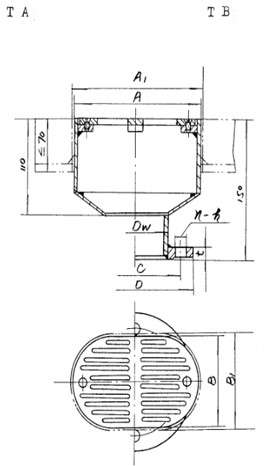

Main Components of Marine Deck Floor Drain
| Component | Function |
|---|---|
| Drain Body | Main drainage chamber |
| Drain Cover | Allows water entry and prevents debris |
| Strainer / Filter | Blocks large particles |
| Outlet Connection | Connects drainage pipeline |
| Flange Ring | Provides fixing connection |
| Sealing Gasket | Prevents leakage |
| Mounting Bolts | Secures installation |
| Surface Coating | Protects against corrosion |
Applicable Standards of Marine Deck Floor Drain
| Standard Category | Applicable Standards |
|---|---|
| Marine Drainage Standards | CB/T Marine Fitting Standards |
| Shipbuilding Standards | CBM Marine Drainage Fittings |
| Deck Drain Standards | CB/T Series Standards |
| Flange Standards | GB/T Marine Flange Standards |
| Material Standards | GB, ASTM, EN, JIS Standards |
| Classification Requirements | CCS, ABS, DNV, LR, BV |
Material Selection of Marine Deck Floor Drain
| Material | Features | Applications |
|---|---|---|
| Stainless Steel | Excellent corrosion resistance and clean appearance | Passenger ships, yachts, offshore vessels |
| Bronze | Excellent seawater resistance | Marine deck drainage systems |
| Brass | Good corrosion resistance and easy machining | Small drainage fittings |
| Cast Iron | Strong and economical | General cargo vessels |
| Aluminum Alloy | Lightweight and corrosion resistant | Aluminum ships |
| Cast Steel | High mechanical strength | Heavy-duty marine applications |
Common Material Standards
| Material | Standard |
|---|---|
| Stainless Steel | ASTM A351 CF8M / EN 1.4408 |
| Bronze | GB/T 1176 / ASTM B62 |
| Cast Iron | GB/T 9439 |
| Aluminum Alloy | GB/T 1173 |
| Carbon Steel | ASTM A216 WCB |
Technical Specifications of Marine Deck Floor Drain
| Item | Specification |
|---|---|
| Product Name | Marine Deck Floor Drain |
| Type | Ship Floor Drain / Deck Drain |
| Function | Surface Water Collection and Drainage |
| Medium | Rainwater, Seawater, Cleaning Water |
| Installation Location | Deck Floor, Accommodation Area, Engine Room |
| Connection Type | Flanged / Threaded / Welded |
| Drain Cover Type | Grating / Strainer / Removable Cover |
| Material Options | Stainless Steel, Bronze, Cast Iron, Steel |
| Surface Treatment | Polishing / Anti-corrosion Coating |
| Application | Marine and Offshore Drainage Systems |
Performance Test of Marine Deck Floor Drain
| Test Item | Description |
|---|---|
| Dimensional Inspection | Confirms product dimensions |
| Material Inspection | Verifies material quality |
| Drainage Flow Test | Checks drainage capacity |
| Watertight Test | Ensures leakage prevention |
| Strength Inspection | Confirms mechanical durability |
| Surface Inspection | Checks corrosion protection |
Advantages of Marine Deck Floor Drain
| Feature | Benefit |
|---|---|
| Floor Installation Design | Suitable for deck surface drainage |
| Removable Cover | Easy cleaning and maintenance |
| Efficient Water Collection | Prevents water accumulation |
| Marine Grade Materials | Suitable for harsh environments |
| Compact Structure | Saves installation space |
Typical Applications
| Application | Function |
|---|---|
| Passenger Ship Deck | Removes cleaning and rainwater |
| Cabin Bathroom Area | Provides floor drainage |
| Galley Area | Handles wastewater drainage |
| Engine Room | Removes equipment area water |
| Offshore Platform | Collects surface water |
| Working Deck | Maintains safe working conditions |
