Male and Female Threaded Needle Valve
Materials of main parts
Body Material: Cast Bronze
Plug Material: Bronze
Stem: Brass
Bonnet:Cast Bronze
Overview
Application:This Male and Female Threaded Needle Valve is designed for marine applications involving oil, gas, water, saturated steam.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | BONNET | BRONZE |
4 | STEM | BRASS |
Technical Specifications:
Model:Female Threaded Needle Valve
Nominal Diameter:DN6~DN12
Connection Type: left side is male thread and right side is male thread.

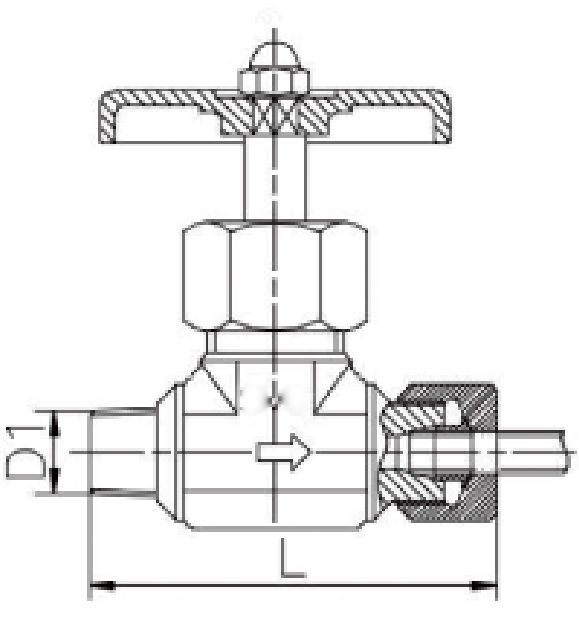

Dimensions Specification:
D1: Inner Diameter
L: Length
D: Nominal Diameter
DIMENSIONS(Unit:mm)
D | IMPA | D1 | L |
|---|---|---|---|
1/8" | 752156 | 1/8" | 45 |
1/4" | 752157 | 1/4" | 45 |
3/8" | 752158 | 3/8" | 45 |
1/2" | 752159 | 1/2" | 67 |
