JIS Marine Storm Valve

Type: Angle Type/ Straight Type

Connection: Flange Type

Operation: Automatic Operation with Close Control

Standard: JIS 3060

Pressure: JIS 5K,10K

Body material: Cast steel

Size: DN50-DN200

Overview

Manual Operation Procedures

‌Check Status‌: Verify that the valve markings are clear, the flange connections are leak-free, and there are no obstructions in the surrounding area.

‌Open for Drainage‌: Turn the handwheel (or handle) counterclockwise with firm, steady, and even force. After fully opening, turn it back 1/2 to 1 full turn to prevent the threads from seizing.

‌Forceful Closure‌: Turn the handwheel clockwise until fully closed. If the medium cools and contracts, it is recommended to wait a moment before tightening again to ensure a proper seal.

‌Prohibited Actions‌: Never use a long lever to operate the valve with excessive force. Do not open or close the valve with a sudden impact. For vertically installed valves, do not operate them horizontally to prevent the disc from failing due to its own weight.

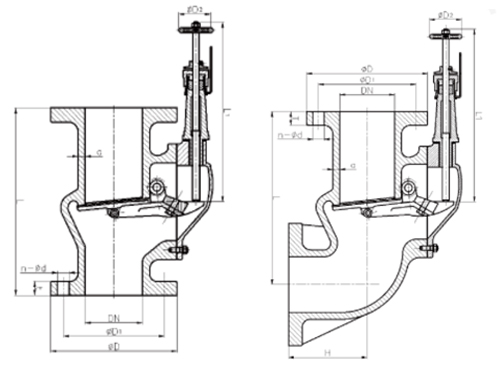

JIS Marine Storm Valve1111.jpg

Main data
straight	DN	D	D1	D3	H	L	L1	t	b	n-d	kg
5K	50	130	105	100		210	131	14	8	4-15	11.3
	65	155	130	100		240	141	14	9	4-15	16.2
	80	180	145	125		260	155	14	9	4-19	21.5
	100	200	165	125		280	171	16	10	8-19	29.4
	125	235	200	125		330	195	16	11	8-19	42.7
	150	265	230	125		360	212	18	12	8-19	51.5
	200	320	280	125		450		20	13	8-23	79.8
Angle	DN	D	D1	D3	H	L	L1	t	b	n-d	kg
5K	50	130	105	100	90	170	131	14	8	4-15	13.7
	65	155	130	100	110	200	141	14	9	4-15	18.8
	80	180	145	125	120	220	155	14	9	4-19	24.8
	100	200	165	125	130	250	171	16	10	8-19	34.9
	125	235	200	125	150	270	195	16	11	8-19	52.5
	150	265	230	125	165	310	212	18	12	8-19	62.8
	200	320	280	125	190	400		20	13	8-23	82.6

Main data
Straight	DN	D	D1	D3	H	L	L1	t	b	n-d	kg
10K	50	155	120	100		210	131	14	8	4-19	12.65
	65	175	140	100		240	141	14	9	4-19	18.15
	80	185	150	125		260	155	14	9	8-19	23.76
	100	210	175	125		280	171	16	10	8-19	32.56
	125	250	210	125		330	195	16	11	8-23	47.96
	150	280	240	125		360	212	18	12	8-23	56.76
	200	330	290	125		450		20	13	12-23	88.11
Angle	DN	D	D1	D3	H	L	L1	t	b	n-d	kg
10K	50	155	120	100	90	170	131	14	8	4-19	15.29
	65	175	140	100	110	200	141	14	9	4-19	22.11
	80	185	150	125	120	220	155	14	9	8-19	26.51
	100	210	175	125	130	250	171	16	10	8-19	38.72
	125	250	210	125	150	270	195	16	11	8-23	57.97
	150	280	240	125	165	310	212	18	12	8-23	69.52
	200	330	290	125	190	400		20	13	12-23	92.07
