JIS F7416 Bronze Angle Lift Check 5K

Item	Description
Product Name	JIS F7416 Bronze Angle Lift Check 5K
Certificates	ABS, LR, BV, DNV, RINA, CCS
FOB Price	Get Latest Price Now
Warranty	12 months (unless otherwise specified)
Place of Origin	China

Overview

1. SCOPE

This standard specifies the bronze 5K union bonnet type lift check angle valves (hereafter referred to as "angle valves") used for ship's fresh water and feed water piping, fuel oil piping, and lubricating oil piping.

2. RELATIONSHIP BETWEEN FLUID CONDITION AND MAXIMUM WORKING PRESSURE

Fluid Condition	Maximum Working Pressure (MPa)
Air, Gas, Oil, and Pulsating Water	0.5
Static Water below 120°C	0.7

3. MATERIALS

Part No.	Part Name	Material
1	Body	JIS H 5111 BC6
2	Disc Guide	JIS H 5111 BC6 or JIS H 3250 C3771BD or C3771BE
3	Cover Nut	C3771BE
4	Disc	(Empty)
5	Gasket	JIS F 7102

4. INSPECTION

The inspection of angle valves shall be carried out in accordance with JIS F 7400, performing the following tests (1) to (5):
(1) Material inspection
(2) External appearance inspection
(3) Dimensional inspection
(4) Assembly inspection
(5) Water pressure test at the following test pressures:
(a) Seat water leakage test: 0.77MPa to 0.4MPa
(b) Body water pressure test: 1.05MPa

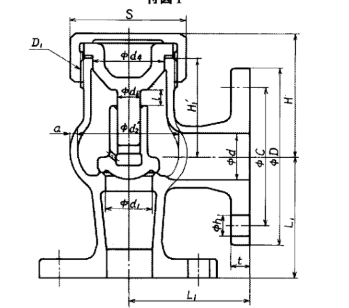

5. DRAWING

Drawing of JIS F7416 Bronze Angle Lift Check 5K.png

6.DIMENSIONS TABLE (UNIT: MM)

Nominal Size	d	d1	L1	D	Flange Bolt Circle Dia. (C)	No. of Bolt Holes	Bolt Thread (h)	t	H	Lift (l)	Body d1'	Body a	Body H1	Body D1	Thread d4	d3	S	Hex Width Across Flats (B1)	Calculated Mass (kg)
15	15	15	55	80	60	4	12	M10	9	56	5	42	3	45	M45×2	32	10	55	1.57
20	20	20	60	85	65	4	12	M10	10	59	7	48	4	48	M48×2	35	12	55	2.07
25	25	25	65	95	75	4	12	M10	10	67	9	54	4	54	M52×2	38	13	60	2.65
32	32	32	80	115	90	4	15	M12	12	65	11	64	4	52	M60×2	42	13	70	3.68
40	40	40	85	120	95	4	15	M12	12	69	13	75	5	56	M68×2	50	15	80	4.95
