JIS F7389 Cock
Materials of main parts
Body Material: Cast Bronze
Plug Material: Bronze
Stem: Brass
Bonnet:Cast Bronze
Overview
Application:This JIS F7389 Cock is designed for marine applications involving oil, gas, water, saturated steam.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | BONNET | BRONZE |
4 | STEM | BRASS |
Technical Specifications:
Model:JIS F7389 Cock
Connection:JIS 20K
Nominal Diameter:DN6~DN10
Connection Type: Screwed type

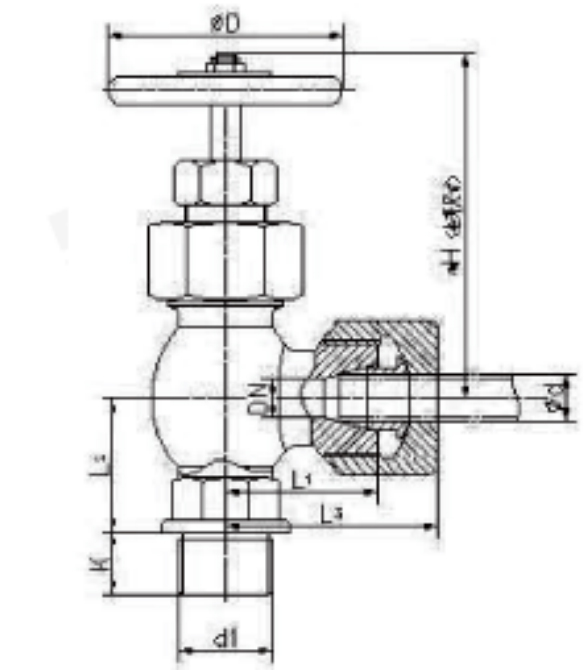

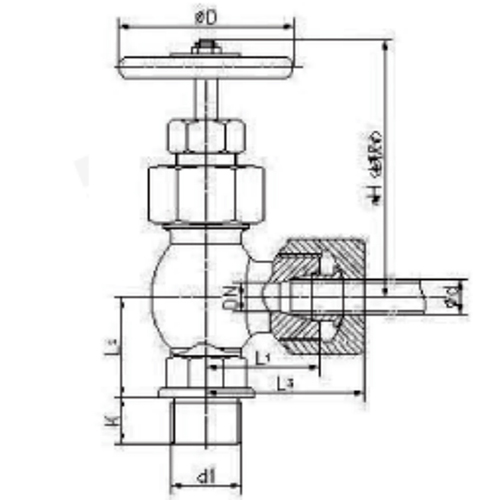

Dimensions Specification:
d: Hose Size
d1: Screw Size
K:Hex Nut Width
L1: Center-to-Center Distance
L2: Nipple Projection Length
L3: Handle Length
D: Overall Diameter
H: Height
DIMENSIONS(Unit:mm)
DN | d | d₁ | K | L₁ | L₂ | L₃ | D | H |
|---|---|---|---|---|---|---|---|---|
6 | 8 / 10 | M20×1.5 | 12 | 32 | 32 | 41 | 63 | 95 |
10 | 15 | M24×2 | 16 | 39 | 35 | 51 | 80 | 105 |
