JIS F7388U Cock
Materials of main parts
Body Material: Cast Brone
Plug Material: Bronze
Stem: Brass
Bonnet:Cast Bronze
Overview
Application:This JIS F7388U Cock is designed for marine applications involving oil, gas, water, saturated steam.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | BONNET | BRONZE |
4 | STEM | BRASS |
Technical Specifications:
Model:JIS F7388U Cock
Connection:JIS 20K
Nominal Diameter:DN6~DN10
Connection Type: Union type

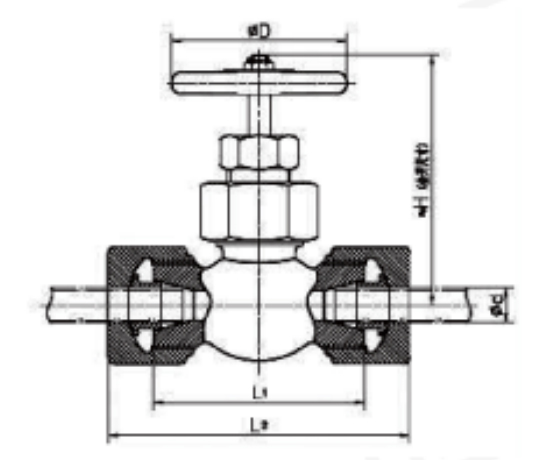

Dimensions Specification:
d: Hose Size
L1: Center-to-Center Distance
L2: Nipple Projection Length
D: Handwheel Diameter
H: Height
DIMENSIONS(Unit:mm)
DN | d | L₁ | L₂ | D | H |
|---|---|---|---|---|---|
6 | 8 / 10 | 64 | 82 | 63 | 100 |
10 | 15 | 72 | 96 | 80 | 115 |
