JIS F7387U Cock
Materials of main parts
Body Material: Bronze
Plug Material: Bronze
Stem: Brass
Bonnet: Bronze
Overview
Application:This JIS F7387U Cock is designed for marine applications involving oil, gas, water, saturated steam.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | BONNET | BRONZE |
4 | STEM | BRASS |
Technical Specifications:
Model:JIS F7387U Cock
Connection:JIS 16K
Nominal Diameter:DN6~DN10
Connection Type: Union type

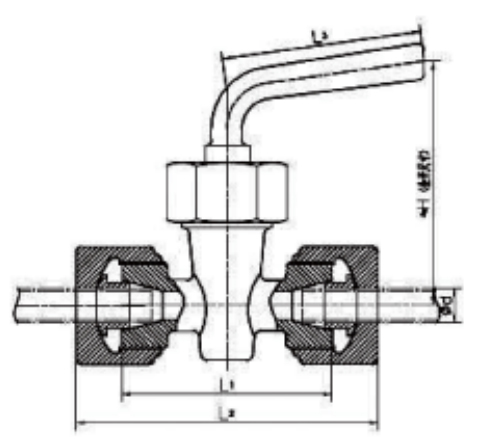

Dimensions Specification:
d: Diameter
L1: Center-to-Center Distance
L2: Overall Length
L3: Handle Length
H: Height
Dimensions(Unit:mm)
DN | d | L₁ | L₂ | L₃ | H |
|---|---|---|---|---|---|
6 | 8/10 | 56 | 74 | 55 | 65 |
10 | 15 | 80 | 104 | 65 | 73 |
