JIS F7387S Cock
Materials of main parts
Body Material: Bronze
Plug Material: Bronze
Stem: Brass
Bonnet: Bronze
Overview
Application:This JIS F7387S Cock is designed for marine applications involving oil, gas, water, saturated steam.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | BONNET | BRONZE |
4 | STEM | BRASS |
Technical Specifications:
Model:JIS F7387S Cock
Connection:JIS 16K
Nominal Diameter:DN6~DN20
Connection Type: Screwed type

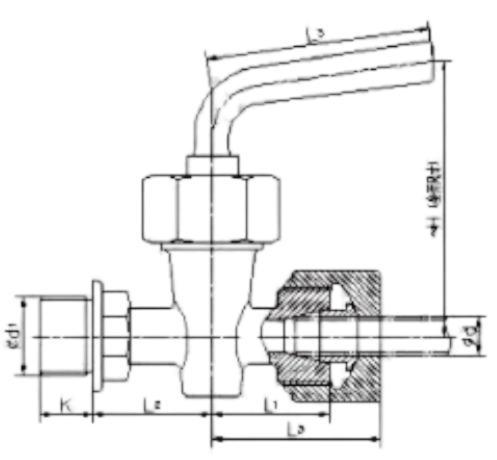

Dimensions Specification:
d: Hose Size
d1: Screw Size
K:Hex Nut Width
L1: Center-to-Center Distance
L2: Nipple Projection Length
L3: Handle Length
D: Overall Diameter
H: Height
Dimensons(Unit:mm)
DN | d | d₁ | K | L₁ | L₂ | L₃ | D | H |
|---|---|---|---|---|---|---|---|---|
6 | 8 / 10 | M20×1.5 | 12 | 28 | 28 | 37 | 55 | 65 |
10 | 15 | M24×2 | 16 | 40 | 35 | 52 | 65 | 73 |
15 | 20 | M30×2 | 22 | 45 | 45 | 58 | 75 | 92 |
20 | 25 | M36×2 | 24 | 50 | 50 | 65 | 85 | 104 |
