JIS F7381 Flanged Cock
Materials of main parts
Body Material: Bronze
Plug Material: Bronze
Handle Material: Steel
Overview
Application:This JIS F7381 Flanged Cock is designed for marine applications involving fresh water, sea water, lubricating oil and fuel oil.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | PLUG | BRONZE |
3 | PACKING GLAND | BRASS |
4 | SEAT RING | BRASS |
5 | HANDLE | STEEL |
6 | STUD | BRASS |
7 | HEXAGON NUT | BRASS |
8 | PACKING | ASBESTOS |
9 | NAME PLATE | BRASS / Al |
Technical Specifications:
Model: JIS F7381 Flanged Cock
Connection: JIS 5K
Nominal Diameter: DN25~DN65
Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 5K
HYDROSTATIC PRESS TEST(SHELL)
7.5
HYDROSTATIC PRESS TEST(SEAT)
5.5

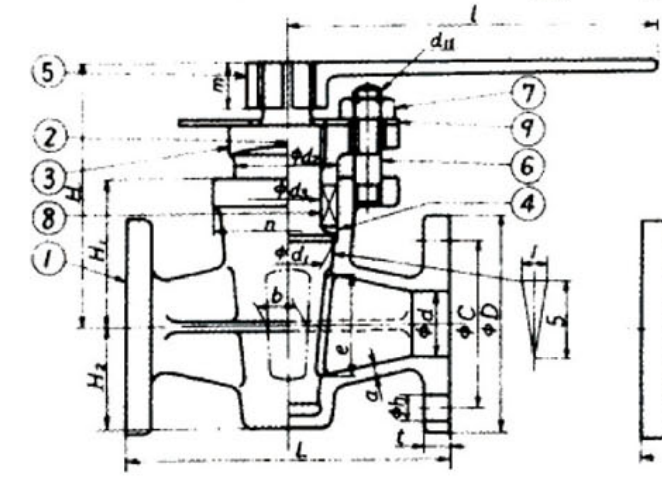

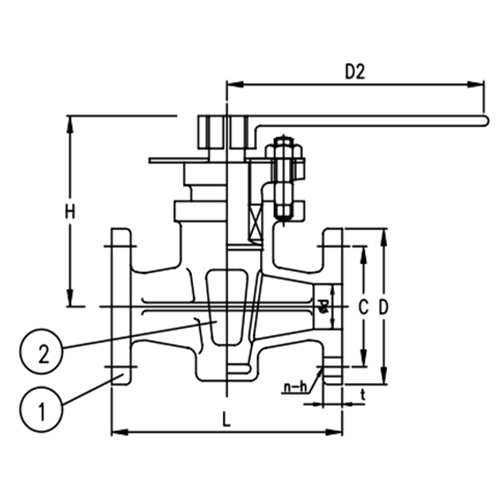

DIMENSIONS (Unit:mm)
RATING | FLANGE | WEIGHT(kg) | |||||
|---|---|---|---|---|---|---|---|
| SIZE | FACE TO FACE | DIA | PCD | BOLT HOLE | HEIGHT | THREE | |
JIS 5K(JIS F7381) | 25 | 130 | 95 | 75 | 4-12 | 105 | 3.81 |
32 | 160 | 115 | 90 | 4-15 | 125 | 6.13 | |
40 | 170 | 120 | 95 | 4-15 | 135 | 7.93 | |
50 | 190 | 130 | 105 | 4-15 | 163 | 11.8 | |
65 | 220 | 155 | 130 | 4-15 | 201 | 19.0 | |
