JIS F7378 16K Cast Iron Screw-Down Check Angle Valve

JIS F7378 16K Cast Iron Screw-Down Check Angle Valve

Item

Description

Product Name

JIS F7378 16K Cast Iron Screw-Down Check Angle Valve

Certificates

ABS, LR, BV, DNV, RINA, CCS

FOB Price

Get Latest Price Now

Warranty

12 months (unless otherwise specified)

Place of Origin

China


Overview

1. SCOPE

This standard specifies the cast iron 16K screw-down check angle valves (hereafter referred to as "angle valves") used for ship's steam piping, air piping, fuel oil piping, lubricating oil piping, fresh water piping, and feed water piping.

2. RELATIONSHIP BETWEEN FLUID CONDITION AND MAXIMUM WORKING PRESSURE

The relationship between the fluid condition and the maximum working pressure for angle valves shall be as shown in Table 1.

TABLE 1

Fluid ConditionMaximum Working Pressure (MPa)

B SeriesS Series
Steam below 230°C-1.6
Steam below 205°C1.61.6
Air, Gas, Oil, and Pulsating Water1.61.6
Static Water below 120°C2.22.2
Note: Refer to 4.(1) for B Series and S Series.

3. CONSTRUCTION, SHAPE, AND DIMENSIONS

The construction, shape, and dimensions shall be as shown in Fig. 1. The tolerance for body wall thickness (a) shall, in principle, be +15% / -10%.
Note: The body, disc, and stem are common with those in JIS F 7310.

4. MATERIALS

Part No.Part NameMaterial (B Series)Material (S Series)Part No.Part NameMaterial (B Series)Material (S Series)
1BodyJIS G 5501 FC200JIS G 5501 FC20012Stud BoltJIS H 3250 C3771BDJIS H 3250 C3771BD
2BonnetJIS G 5501 FC200JIS G 5501 FC20013Hexagon NutJIS G 3101 SS400JIS G 3101 SS400
3HandwheelJIS G 5501 FC200JIS G 5501 FC20014Hexagon NutJIS H 3250 C3604BDJIS H 3250 C3604BD
4DiscJIS H 5111 BC6JIS G 5121 SCS215Hexagon Nut--
5Seat RingJIS H 5111 BC6JIS G 5121 SCS216Stop PinJIS G 3101 SS400JIS G 3101 SS400
7GlandJIS H 5111 BC6JIS G 4303 SUS420J217Split PinJIS H 3260 C2600WJIS H 3260 C2600W
8Packing GlandJIS H 5111 BC6JIS G 4303 SUS420J219PackingPer JIS F 7102Per JIS F 7102
9Packing Gland NutJIS H 5111 BC6JIS G 4303 SUS40320GasketPer JIS F 7102Per JIS F 7102
10StemJIS H 3250 C3771BD or C3771BEJIS G 4303 SUS40321Name PlateJIS H 3100 C2801PJIS H 3100 C2801P
11Stud BoltJIS G 3101 SS400JIS G 3101 SS400



5. INSPECTION

The inspection of angle valves shall be carried out in accordance with JIS F 7400, performing the following tests (1) to (5):
(1) Material inspection
(2) External appearance inspection
(3) Dimensional inspection
(4) Assembly inspection
(5) Hydraulic test at the following test pressures:
(a) Seat water leakage test: 2.42 MPa from below the body, and reduced pressure from 2.42 MPa to 0.4 MPa from above the body.
(b) Body water pressure test: 3.3 MPa


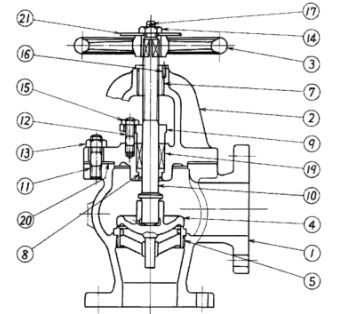

DRAWING

Drawing of JIS F7378 16K Cast Iron Screw-Down Check Angle Valve.png

DIMENSIONS TABLE (UNIT: MM)

Nominal Sizedd1L1DFlange Bolt Circle Dia. CNo. of Bolt HolesBolt Thread htOverall Height HLift lBody aBody H1Body D1Thread D4Stem d5Packing Box SStem Thread d6Hex Width Across Flats B1




Calculated Mass (kg)*
505050120155120819M162025515160105106515578130TW221436M16M1218.0
656573130175140819M162226017200130116217595135TW241738M16M1224.9
808088150200160823M2024290202241501270205110148TW261942M20M1235.8
100100111170225185823M2026330252501851380230155160TW302248M20M1249.2
125125138200270225825M2226375313122251592270185182TW362756M22M1676.1
1501501632253052601225M22284253735526516110295190202TW423066M22M16103
