JIS F7359 Angle Lift Check Valve
Materials of main parts
Body Material: Cast Iron
Disc Material: Bronze/Stainless Steel
Bonnet Material: Cast Iron
Overview
Application:This JIS F7359 Angle Lift Check Valve is designed for marine applications involving oil, pulsating water, and non-shock water (up to 120°C).
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | CAST IRON |
2 | BONNET | CAST IRON |
3 | DISC | BRONZE/STAINLESS STEEL |
4 | VALVE SEAT | BRONZE/STAINLESS STEEL |
5 | BUSH | BRONZE/STAINLESS STEEL |
6 | STUD BOLT | STEEL |
7 | HEXAGON NUT | STEEL |
8 | SET SCREW | STEEL |
9 | GASKET | NON ASBESTOS |
Model: JIS F7359 Angle Lift Check Valve
Connection: JIS 5K
Pressure Ratings (Max Working Pressure):
Nominal Diameter: DN50~DN200
Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 5K
HYDROSTATIC PRESS TEST(SHELL)
10.5
HYDROSTATIC PRESS TEST(SEAT)
7.7
Connection Type:Bolted Bonnet Renewable Seat Flanged Ends
Fluid Condition | Rating (JIS 5K) |
|---|---|
Oil and Pulsation water | 5 |
Non-Shock Water up to 120°C | 7 |

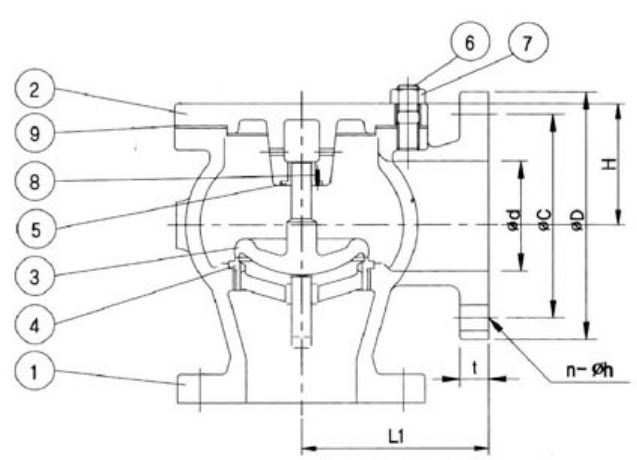

Dimensions Specification:
L:face to face
Ød: Bore Diameter
ØD:F.O.D
ØC:P.C.D
N-Øh:Number of holes and size
t: thickness
H:height
W:weight
DIMENSIONS(Unit:mm)
RATING | SIZE | Ød | ØD | ØC | N-Øh | t | L | H | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
JIS 5K | 50A | 50 | 130 | 105 | 4-15 | 16 | 100 | 77 | 9.5 |
65A | 65 | 155 | 130 | 4-15 | 18 | 115 | 81 | 13.8 | |
80A | 80 | 180 | 145 | 4-19 | 18 | 130 | 84 | 18.9 | |
100A | 100 | 200 | 165 | 8-19 | 20 | 150 | 96 | 25.6 | |
125A | 125 | 235 | 210 | 8-19 | 20 | 170 | 108 | 36.7 | |
150A | 150 | 265 | 230 | 8-19 | 22 | 190 | 125 | 50.9 | |
200A | 200 | 320 | 280 | 8-23 | 24 | 220 | 157 | 95 |
