JIS F7358 Globe Lift Check Valve
Materials of main parts
Body Material: Cast Iron
Disc Material: Bronze/Stainless Steel
Bonnet Material: Cast Iron
Overview
Application:This JIS F7358 Globe Lift Check Valve is designed for marine applications involving oil, pulsating water, and non-shock water (up to 120°C).

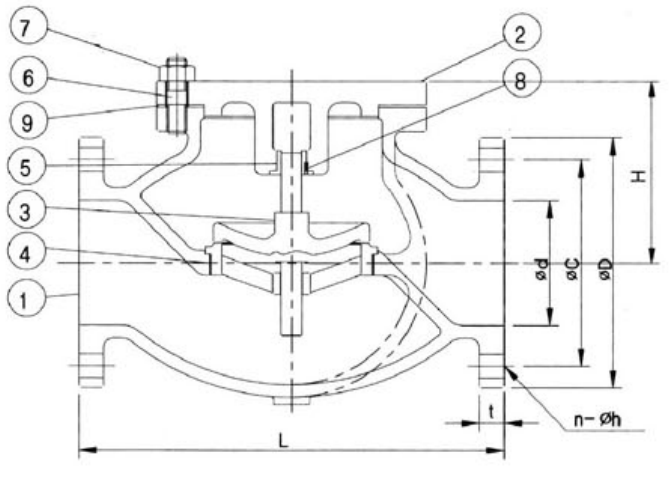

Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | CAST IRON |
2 | BONNET | CAST IRON |
3 | DISC | BRONZE/STAINLESS STEEL |
4 | VALVE SEAT | BRONZE/STAINLESS STEEL |
5 | BUSH | BRONZE/STAINLESS STEEL |
6 | STUD BOLT | STEEL |
7 | HEXAGON NUT | STEEL |
8 | SET SCREW | STEEL |
9 | GASKET | NON ASBESTOS |
Model: JIS F7358 Globe Lift Check Valve
Connection: JIS 5K
Pressure Ratings (Max Working Pressure):
Nominal Diameter: DN50~DN150
Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 5K
HYDROSTATIC PRESS TEST(SHELL)
10.5
HYDROSTATIC PRESS TEST(SEAT)
7.7
Connection Type:Bolted Bonnet Renewable Seat Flanged Ends
Fluid Condition | Rating (JIS 5K) |
|---|---|
Oil and Pulsation water | 5 |
Non-Shock Water up to 120°C | 7 |
Dimensions Specification:
L:face to face
Ød: Bore Diameter
ØD:F.O.D
ØC:P.C.D
N-Øh:Number of holes and size
t: thickness
H:height
W:weight
DIMENSIONS(Unit:mm)
RATING | SIZE | 50A | 65A | 80A | 100A | 125A | 150A |
|---|---|---|---|---|---|---|---|
JIS 5K(JIS F7358) | Ød | 50 | 65 | 80 | 100 | 125 | 150 |
ØD | 130 | 165 | 180 | 200 | 235 | 265 | |
ØC | 105 | 130 | 145 | 165 | 200 | 230 | |
N-Øh | 4-15 | 4-15 | 4-19 | 8-19 | 8-19 | 8-23 | |
t | 16 | 18 | 18 | 20 | 20 | 22 | |
L | 210 | 250 | 280 | 340 | 410 | 480 | |
H | 107 | 124 | 129 | 146 | 166 | 188 | |
Weight(Kg) | 11.3 | 16.8 | 23.2 | 32.5 | 48.1 | 66.9 |
