JIS F7347 5K Bronze Angle Valve Union Bonnet Type
Item | Description |
|---|---|
Product Name | JIS F7347 5K Bronze Angle Valve Union Bonnet Type |
Certificates | ABS, LR, BV, DNV, RINA, CCS |
FOB Price | Get Latest Price Now |
Warranty | 12 months (unless otherwise specified) |
Place of Origin | China |
Overview
1. SCOPE
This standard specifies the bronze 5K union bonnet type angle valves (hereafter referred to as "angle valves") used for ship's steam piping, fresh water and feed water piping, fuel oil piping, and lubricating oil piping.
2. RELATIONSHIP BETWEEN FLUID CONDITION AND MAXIMUM WORKING PRESSURE
The relationship between the fluid condition and the maximum working pressure for angle valves shall be as shown in Table 1.
TABLE 1
| Fluid Condition | Maximum Working Pressure (MPa) |
|---|---|
| Steam below 205°C | 0.5 |
| Air, Gas, Oil, and Pulsating Water | 0.5 |
| Static Water below 120°C | 0.7 |
| Note: Bold letters indicate nominal pressure. |
3. MATERIALS
| Part No. | Part Name | Material |
|---|---|---|
| 1 | Body | JIS H 5111 BC6 |
| 2 | Bonnet | JIS H 5111 BC6 or JIS H 3250 C3771BD or C3771BE |
| 3 | Cover Nut | JIS H 3250 C3771BD or C3771BE |
| 4 | Disc | JIS H 5111 BC6 |
| 5 | Disc Seat | JIS H 3250 BC3771BD |
| 6 | Gland | JIS H 3250 C3771BD |
| 7 | Gland Nut | JIS H 3250 C3771BD or C3771BE |
| 8 | Stem | JIS H 3250 C3771BD or C3771BE |
| 9 | Handwheel | JIS G 5501 FC200 |
| 10 | Hexagon Nut | JIS H 3250 C3771BD |
| 11 | Split Pin | JIS H 3260 C2600W |
| 12 | Disc Stopper | JIS H 3100 C2600P |
| 13 | Packing | Per JIS F 7102 |
| 14 | Gasket | Per JIS F 7102 |
| 15 | Name Plate | JIS H 3100 C2801P |
| 16 | Packing Gland Ring | JIS H 3250 C3771BD or C3771BE |
4. INSPECTION
The inspection of angle valves shall be carried out in accordance with JIS F 7400, performing the following tests (1) to (5):
(1) Material inspection
(2) External appearance inspection
(3) Dimensional inspection
(4) Assembly inspection
(5) Hydraulic test at the following test pressures:
(a) Seat water leakage test: 0.77MPa
(b) Body water pressure test: 1.05MPa

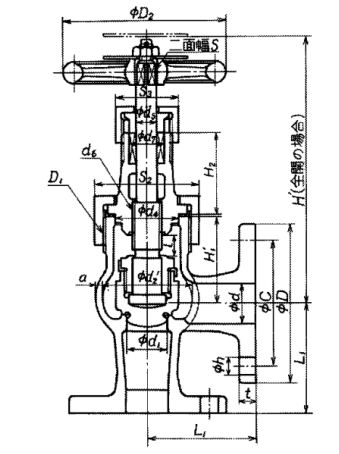

DRAWING
DIMENSIONS TABLE (UNIT: MM)
| Nominal Size | d | d1 | L1 | D | Flange Bolt Circle Dia. C | No. of Bolts | Bolt Thread Size h | t | Overall Height H (approx.) | Lift l | Handwheel D3 | Body d1' | Body a | Body H1 | Body D1 | Thread Size d6 | Bonnet Height H2 | Stem d7 | Stem d5 | Packing Box S | Hex Width Across Flats B1 | Hex Width Across Flats S2 | Calculated Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 15 | 15 | 55 | 80 | 60 | 4 | 12 | M10 | 9 | 145 | 10 | 80 | 42 | 3 | 45 | M45×2 | 32 | 43 | 10 | TW14 | 8 | 17 | 55 | 2.15 |
| 20 | 20 | 20 | 60 | 85 | 65 | 4 | 12 | M10 | 10 | 155 | 12 | 100 | 48 | 4 | 48 | M48×2 | 35 | 47 | 12 | TW16 | 10 | 19 | 55 | 2.94 |
| 25 | 25 | 25 | 65 | 95 | 75 | 4 | 12 | M10 | 10 | 175 | 14 | 125 | 54 | 4 | 54 | M52×2 | 38 | 54 | 13 | TW18 | 10 | 21 | 60 | 3.82 |
| 32 | 32 | 32 | 80 | 115 | 90 | 4 | 15 | M12 | 12 | 175 | 17 | 125 | 64 | 4 | 52 | M60×2 | 42 | 56 | 13 | TW18 | 10 | 21 | 70 | 4.99 |
| 40 | 40 | 40 | 85 | 120 | 95 | 4 | 15 | M12 | 12 | 190 | 20 | 140 | 75 | 5 | 56 | M68×2 | 50 | 59 | 15 | TW20 | 12 | 23 | 80 | 6.40 |
