JIS F7340 Marine Cast Steel Globe Valve
Item | Description |
|---|---|
Product Name | JIS F7340 Marine Cast Steel Globe Valve |
Certificates | ABS, LR, BV, DNV, RINA, CCS |
FOB Price | Get Latest Price Now |
Warranty | 12 months (unless otherwise specified) |
Place of Origin | China |
Overview
1. Scope
This standard specifies the cast steel globe air valves mainly used for ship starting air piping systems.
2. Maximum Working Pressure
The maximum working pressure of the globe valve shall be 4.6 MPa.
3. Materials
| Part No. | Part Name | Material |
|---|---|---|
| 1 | Body | JIS G 5101 SC450 |
| 2 | Bonnet | JIS G 5501 FC200 |
| 3 | Handwheel | JIS G 5501 FC200 |
| 4 | Disc | JIS H 3250 C6782BD or C6782BE (for size 32 & 40) JIS H 5102 HBsC2 (for size 50 and above) |
| 5 | Seat Ring | JIS H 3250 C6782BD or C6782BE (for size 32 & 40) JIS H 5102 HBsC2 (for size 50 and above) |
| 6 | Threaded Ring | JIS H 3250 C6782BD or JIS H 5102 HBsC2 |
| 7 | Disc Holder / Retainer | JIS H 5111 BC6 |
| 8 | Packing Receiving Ring | JIS G 4303 SUS403 |
| 9 | Packing Gland Ring | JIS G 4051 S25C |
| 10 | Stem | JIS G 4303 SUS403 |
| 11 | Packing Gland | JIS G 4051 S25C |
| 12 | Impact Fitting | JIS G 3101 SS400 |
| 13 | Stud Bolt | JIS G 4051 S35C |
| 14 | Stud Bolt | JIS G 3101 SS400 |
| 15 | Hexagon Nut | JIS G 4051 S25C |
| 16 | Hexagon Nut | JIS G 4051 S25C |
| 17 | Hexagon Nut | JIS G 3101 SS400 |
| 18 | Impact Fitting | JIS H 3250 C3771BD |
| 19 | Cover for Impact Fitting | JIS G 4051 S25C |
| 20 | Parallel Pin | JIS G 4051 S25C |
| 21 | Parallel Pin | JIS H 3250 C3771BD |
| 22 | Split Pin | JIS H 3260 C2600W |
| 23 | Disc Rotation Stopper | JIS H 3100 C2600P-O |
| 24 | Packing | Per JIS F 7102 |
| 25 | Gasket | Per JIS F 7102 |
| 26 | Nameplate | JIS H 3100 C2801P-H |
4. Inspection
The inspection of globe valves shall be carried out in accordance with JIS F 7400, performing the following tests (1) to (5):
(1) Material inspection
(2) External appearance inspection
(3) Dimensional inspection
(4) Assembly inspection
(5) Pressure test at the following test pressures:
(a) Seat water leakage test: 5.06 MPa
(b) Body water pressure test: 6.9 MPa

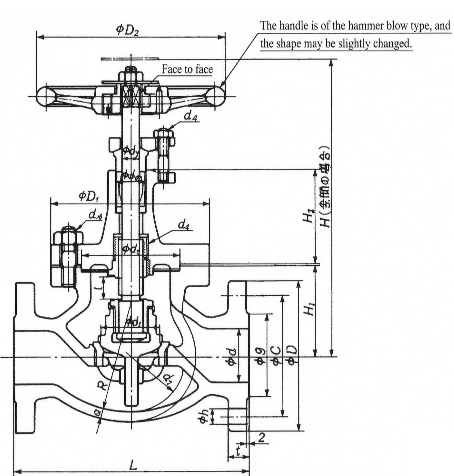

5. Drawing
6. Dimensions Table (Unit: mm)
| Nominal Size (dn) | d | L | D | Flange Bolt Circle Dia. C | No. of Bolt Holes | Bolt Thread h | t | f | g | Overall Height H | Lift l | Handwheel Dia. D2 | Body Ref. d2 | Body Ref. a | Body Ref. R | Body Ref. H1 | Body Ref. D1 | Body Ref. d4 | Bonnet Height H2 | Stem Thread d6 | Stem Dia. d5 | Packing Box S | Bolt Thread d7 | Calculated Mass (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 32 | 30 | 220 | 140 | 4 | 19 | M16 | 22 | 80 | 270 | 16 | 180 | 80 | 10 | 80 | 85 | 135 | 75 | 86 | TW24 | 18 | 14 | 28 | M16 | 12 | 16.7 |
| 40 | 40 | 40 | 240 | 160 | 4 | 23 | M20 | 22 | 90 | 280 | 20 | 180 | 95 | 11 | 95 | 85 | 145 | 85 | 90 | TW24 | 18 | 14 | 28 | M16 | 12 | 21.1 |
| 50 | 50 | 52 | 260 | 165 | 8 | 19 | M16 | 22 | 105 | 350 | 22 | 224 | 110 | 11 | 110 | 105 | 160 | 100 | 112 | TW28 | 22 | 17 | 36 | M16 | 12 | 28.8 |
| 65 | 65 | 72 | 310 | 200 | 8 | 23 | M20 | 26 | 130 | 390 | 27 | 250 | 145 | 13 | 145 | 120 | 200 | 130 | 127 | TW32 | 24 | 19 | 38 | M20 | 12 | 48.7 |
| 80 | 80 | 82 | 340 | 210 | 8 | 23 | M20 | 28 | 140 | 430 | 34 | 280 | 165 | 14 | 165 | 125 | 220 | 140 | 141 | TW34 | 26 | 22 | 42 | M22 | 16 | 60.9 |
| 100 | 100 | 102 | 390 | 240 | 8 | 25 | M22 | 32 | 160 | 480 | 42 | 315 | 200 | 16 | 200 | 140 | 240 | 160 | 162 | TW38 | 30 | 22 | 48 | M22 | 16 | 86.0 |
| 125 | 125 | 133 | 470 | 275 | 8 | 25 | M22 | 36 | 195 | 570 | 52 | 400 | 250 | 18 | 250 | 170 | 285 | 200 | 189 | TW44 | 36 | 30 | 56 | M22 | 20 | 139 |
| 150 | 150 | 163 | 540 | 325 | 12 | 27 | M24 | 38 | 235 | 655 | 65 | 450 | 305 | 19 | 305 | 200 | 330 | 240 | 220 | TW50 | 40 | 32 | 62 | M24 | 20 | 199 |
