JIS F7337 40K Forged Steel Marine Angle Valve

Item	Description
Product Name	JIS F7337 40K Forged Steel Marine Angle Valve
Certificates	ABS, LR, BV, DNV, RINA, CCS
FOB Price	Get Latest Price Now
Warranty	12 months (unless otherwise specified)
Place of Origin	China

Overview

1. Scope
This Japanese Industrial Standard specifies forged steel angle air valves for compressed air in ships.

2. Pressure rating
The maximum working pressure shall be 4.6 MPa.

3. Classification

Type	Type of connection
S	Union nut
F	Flange

4. Materials

No.	Component	Material
1	Body	JIS G 3201 - SF 440 A or JIS G 4051 - S 25 C
2	Flange	JIS G 3201 - SF 440 A or JIS G 4051 - S 25 C
3	Bonnet	JIS G 3201 - SF 440 A or JIS G 4051 - S 25 C
4	Disc	JIS H 3250 - C 6782 BD or C 6782 BE
5	Valve disc nut	JIS H 3250 - C 6782 BD
6	Stem	JIS H 3250 - C 6782 BD or C 6782 BE
7	Handwheel	JIS G 5501 - FC 200
8	Seat ring	JIS H 3250 - C 6782 BD or C 6782 BE
9	Gland nut	JIS H 3250 - C 3771 BD
10	Gland	(Empty)
11	Hexagon nut	(Empty)
12	Split pin	JIS H 3260 - C 2600 W
13	Cross recessed pan head machine screw	JIS H 3260 - C 2700 W
14	Bonnet lock plate	JIS G 4306 - SUS 304
15	Disc lock washer	JIS H 3100 - C 2600 P-O
19	Packing	JIS F 7102
20	Gasket	JIS F 7102
21	Name plate	JIS H 3100 - C 2801 P-H

5. Tests and inspection

The angle valves shall be subjected to the following items of inspection in accordance with JIS F 7400.
(1) Material inspection
(2) Visual inspection
(3) Dimensional inspection
(4) Assembly inspection
(5) Hydraulic inspection
The valves shall be tested as following test pressure:
(a) Watertight inspection for valve seat: 5.06 MPa
(b) Hydraulic inspection for body: 6.9 MPa

6. Drawing

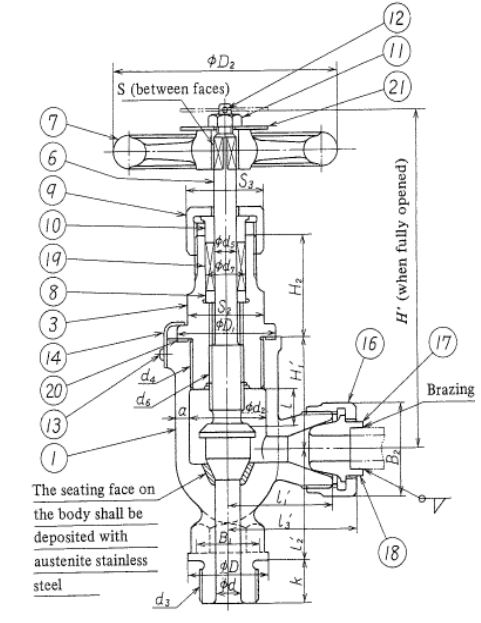

Drawing of JIS F7337 40K Forged Steel Marine Angle Valve.png
