JIS F7333 Cast Iron Angle Hose Valve
Materials of main parts
Body Material: Cast Iron
Disc Material: Bronze
Stem Material: Brass
Bonnet Material: Cast Iron
Overview
Application:This JIS F7333 Cast Iron Angle Hose Valve is designed for marine applications involving pulsation water and non-shock water(up to 120℃).
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | CAST IRON |
2 | BONNET | CAST IRON |
3 | DISC | BRONZE |
4 | DISC NUT | BRONZE/BRASS |
5 | PACKING GLAND | BRONZE/BRASS |
6 | STEM | BRASS |
7 | HANDWHEEL | CAST IRON |
8 | HEXAGON NUT | STEEL |
9 | HEXAGON NUT | STEEL |
10 | HEXAGON NUT | STEEL |
11 | STUD BOLT | STEEL |
12 | STUD BOLT | STEEL |
13 | SPLIT PIN | BRASS |
14 | DISC LOCK WASHER | BRASS |
15 | PACKING | NON ASBESTOS |
16 | GASKET | NON ASBESTOS |
17 | WASHER | STEEL |
18 | BASE CONNECTION | BRONZE |
19 | CAP | BRONZE |
20 | COUPLING RING | BRONZE |
21 | SET RING | BRONZE |
22 | SET SCREW | BRASS |
23 | CHAIN | STAINLESS WIRE |
24 | GASKET | RUBBER |
25 | GASKET | NON ASBESTOS |
26 | VALVE SEAT | BRONZE |
Technical Specifications:
Model:JIS F7333 Cast Iron Angle Hose Valve
Connection:JIS 5K/ 10K
Pressure Ratings (Max Working Pressure Unit:kgf/cm²)
Rating | JIS 5K | JIS 10K |
|---|---|---|
Pulsation Water | 5 | 10 |
Non-Shock Water up to 120 ℃ | 7 | 14 |
Nominal Diameter:DN50~DN65
Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 5K
JIS 10K
HYDROSTATIC PRESS TEST(SHELL)
10.5
21
HYDROSTATIC PRESS TEST(SEAT)
7.7
15.4
Connection Type: Bolted Bonnet Integral seat

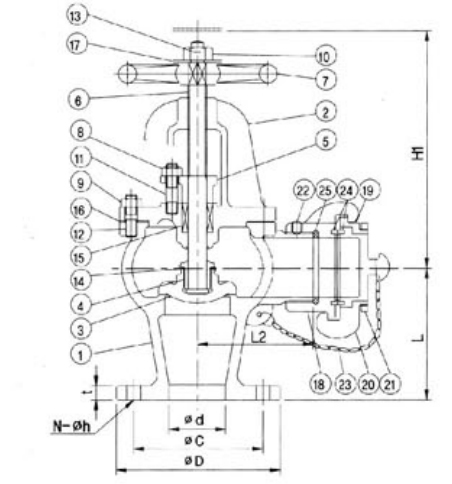

Dimensions Specification:
Ød: Diameter
ØD: Outer Diameter.
ØC: Pitch Circle Diameter
N-Øh: Number and Diameter of Bolt Holes.
t: Flange Thickness.
L: Face-to-Face Length
H: Height.
Dimensions(Unit:mm)
RATING | SIZE | Ød | ØD | ØC | N-Øh | t | L1 | L | H | H1 | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
JIS 5K | 50A | 50 | 130 | 105 | 4-15 | 16 | 105 | 100 | 270 | 240 | 14.7 |
65A | 60 | 155 | 130 | 4-15 | 22 | 135 | 130 | 310 | 270 | 28.2 | |
JIS 10K | 50A | 50 | 155 | 120 | 4-19 | 20 | 110 | 120 | 285 | 255 | 18.9 |
65A | 60 | 175 | 140 | 4-19 | 22 | 135 | 130 | 310 | 270 | 28.2 |
