JIS F7306 Cast Iron Angle Valve

Material of Main Parts

Body: Cast Iron FC200

Seat: Bronze BC6

Disc: Bronze BC6

Stem: Brass C3771BD

Overview

Application:

Pressure and Temperature Limitations: This is a low-pressure valve, typically used in PN10/16 level systems. It cannot be used in high-temperature, high-pressure main steam or fuel oil systems. System parameters must be confirmed to be within the valve's rated range during selection.

Media Compatibility: Although resistant to seawater, it is not suitable for strong acids, strong alkalis, or other special chemicals. When used with oily media, the compatibility of the sealing material must be confirmed.

Material Specification:

NO.	PARTS	MATERIAL
1	BODY	CAST IRON
2	BONNET	CAST IRON
3	HANDWHEEL	CAST IRON
4	DISC	BRONZE/STAINLESS STEEL
5	INTEGRAL SEAT	BRONZE/STAINLESS STEEL
6	DISC NUT	BRONZE/STAINLESS STEEL
7	SCREW BONNET BUSH	BRONZE/STAINLESS STEEL
8	BONNET BUSH	BRONZE/STAINLESS STEEL
9	PACKING GLAND	BRONZE
10	STEM	BRONZE/STAINLESS STEEL
11	STUD BOLT	STEEL
12	HEXAGON NUT	STEEL
13	HEXAGON NUT	STEEL
14	HEXAGON NUT	STEEL
15	HEXAGON NUT	STEEL
16	LOCK PIN	STEEL
17	SPLIT PIN	BRASS
18	DISC LOCK WASHER	BRASS
19	PACKING	NON ASBESTOS
20	GASKET	NON ASBESTOS
21	WASHER	STEEL

Hydraulic Test

Nominal Diameter	Test Pressure MPa[kgf/㎡]
Nominal Diameter	Body	Seat
≤DN300	1.03[10.5]	0.76[7.7]
DN350~DN400	0.88[9]	0.65[6.6]
≥DN450	0.74[7.5]	0.54[5.5]

Reference Drawing

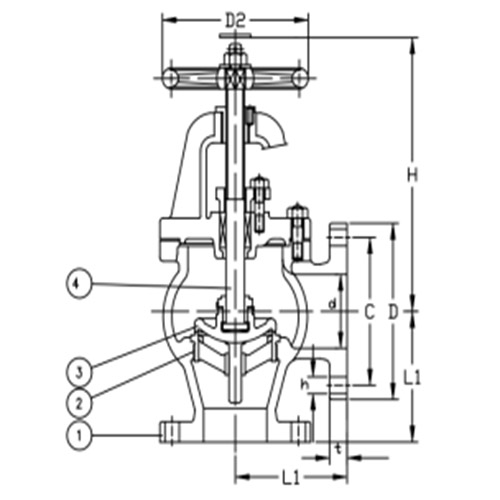

Reference Drawing of JIS F7306 Cast Iron Angle Valve.jpg

Reference Datasheet

Size	L1	D	C	No.	h	t	H	D2
50	100	230	105	4	15	16	240	160
65	115	155	130	4	15	18	255	180
80	130	180	145	4	19	18	265	180
100	150	200	165	8	19	20	310	224
125	170	235	200	8	19	20	330	250
150	190	265	230	8	19	22	380	280
200	220	320	280	8	23	24	450	315
250	275	385	345	12	23	26	540	355
300	310	430	390	12	23	28	610	400
350	360	480	435	12	25	30	690	500
400	395	540	495	16	25	30	770	630
450	440	605	555	16	25	30	835	630
500	485	655	605	20	25	32	915	710
