JIS F7302 Angle Valve
Materials of main parts
Body Material: Bronze
Disc Material: Bronze/Brass
Stem Material: Brass
Bonnet Material: Bronze/Brass
Overview
Application: This series of JIS F7302 angle valves is designed for marine applications involving steam, air, gas, oil, pulsating water, and non-shock water (up to 120°C).
Material Specification:

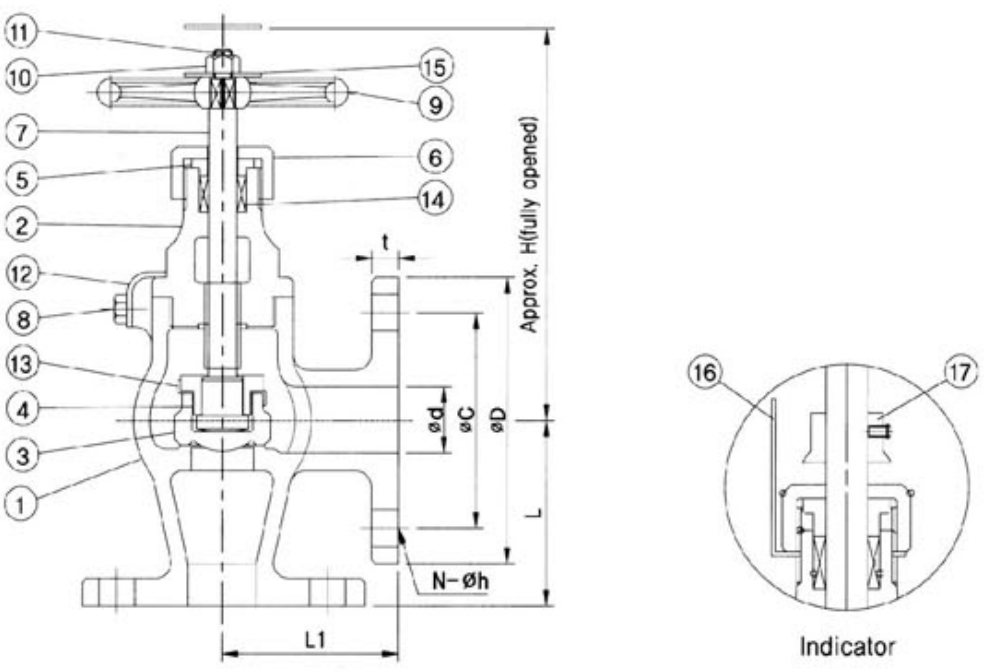

NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | BONNET | BRONZE/BRASS |
3 | DISC | BRONZE/BRASS |
4 | VALVE DISC NUT | BRASS |
5 | PACKING GLAND | BRASS |
6 | GLAND NUT | BRASS |
7 | STEM | BRASS |
8 | SET SCREW | BRASS |
9 | HANDWHEEL | CAST IRON |
10 | HEXAGON NUT | BRASS |
11 | SPLIT PIN | BRASS |
12 | LOCK PLATE | BRASS |
13 | DISC LOCK WASHER | BRASS |
14 | PACKING | NON ASBESTOS |
15 | WASHER | STEEL |
16 | INDICATOR PLATE | BRASS |
17 | INDICATOR PIECE | BRASS |
Technical Specifications:
Model: JIS F7302
Connection: Screwed Bonnet Integral Seat; Rising Stem Flanged Ends
Pressure Ratings (Max Working Pressure):
Rating | Fluid Condition | Pressure (kgf/cm²) |
|---|---|---|
JIS 5K | Steam up to 205°C | 4.9 |
Air, Gas, Oil and Pulsating water | 4.9 | |
Non-Shock Water up to 120°C | 6.9 |
Nominal Diameter: 15A ~ 65A
Hydrostatic Test Pressure (kgf/cm²):
Rating | Shell Test | Seat Test |
|---|---|---|
JIS 5K | 10.3 | 7.6 |
Dimensions Specification:
L:face to face
D:F.O.D
C:P.C.D
NO.:number of holes
H:diameter of holes
W:weight
Dimensions Specification (Unit: mm):
Size | Ød | ØD | ØC | N-Øh | L | L1 | H | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
15A | 15 | 80 | 60 | 4-12 | 9 | 55 | 120 | 1.98 |
20A | 20 | 85 | 65 | 4-12 | 10 | 60 | 130 | 2.73 |
25A | 25 | 95 | 75 | 4-12 | 10 | 65 | 145 | 3.44 |
32A | 32 | 115 | 90 | 4-15 | 12 | 80 | 150 | 4.77 |
40A | 40 | 120 | 95 | 4-15 | 12 | 85 | 165 | 5.99 |
| 50A | 50 | 130 | 105 | 4-15 | 14 | 100 | 200 | 10.1 |
| 65A | 60 | 155 | 130 | 4-15 | 14 | 115 | 220 | 15.6 |
