JIS F7224 Small Size Duplex Oil Strainer
Materials of main parts
Body Material: Cast Iron
Cover Material: Cast Iron
Strainer Cylinders Material: Steel/Stainless Steel
Overview
Application:This JIS F7224 Small Size Duplex Oil Strainer is designed for marine applications involving seawater, oil, and steam (up to 220°C).
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | CAST IRON |
2 | COVER | CAST IRON |
3 | COCK PLUG | BRONZE |
4 | HANDLE | STEEL / STAINLESS STEEL |
5 | FILTER CYLINDER | STEEL / STAINLESS STEEL |
6 | STRAINER HANDLE | STEEL |
7 | COVER YOKE | DUCTILE IRON / STEEL |
8 | YOKE BOLT | STEEL |
9 | AIR PURGE COCK | BRONZE |
10 | DRAIN PLUG | BRASS |
11 | O-RING | RUBBER |
Technical Specifications:
Model: JIS F7224 Small Size Duplex Oil Strainer
Connection: JIS 5K
Nominal Diameter: DN25~DN40
Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 5K
HYDROSTATIC PRESS TEST(SHELL)
5.8
HYDROSTATIC PRESS TEST(COCK)
4.3

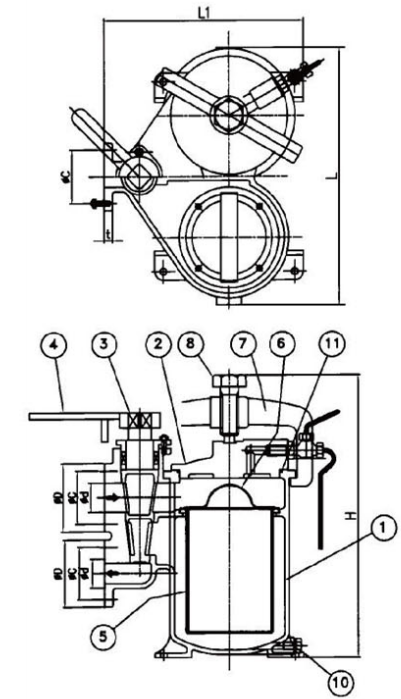

Dimensions Specification:
L:face to face
Ød: Bore Diameter
ØD:F.O.D
ØC:P.C.D
N-Øh:Number of holes and size
t: thickness
H:height
W:weight
DIMENSIONS(Unit:mm)
RATING | SIZE | Ød | ØD | ØC | N-tap | t | L | L1 | H | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
JIS 5K(JIS F7220) | 25A | 25 | 78 | 75 | 4-M10 | 14 | 106 | 167 | 250 | 16.0 |
32A | 32 | 95 | 90 | 4-M12 | 16 | 240 | 211 | 295 | 25.6 | |
40A | 40 | 120 | 95 | 4-M12 | 16 | 260 | 241 | 330 | 31.6 |
