JIS F7209 Simplex Oil Strainer

Materials of main parts

Body Material: Cast Iron

Cover Material: Cast Iron

Strainer Cylinders Material: Steel/Stainless Steel

Application:This JIS F7209 Simplex Oil Strainer is designed for marine applications involving fuel oil and lubrication oil.

Material Specification:

Technical Specifications:

RATING	JIS 5K	JIS 10K
HYDROSTATIC PRESS TEST (SHELL)	7.4	7.4

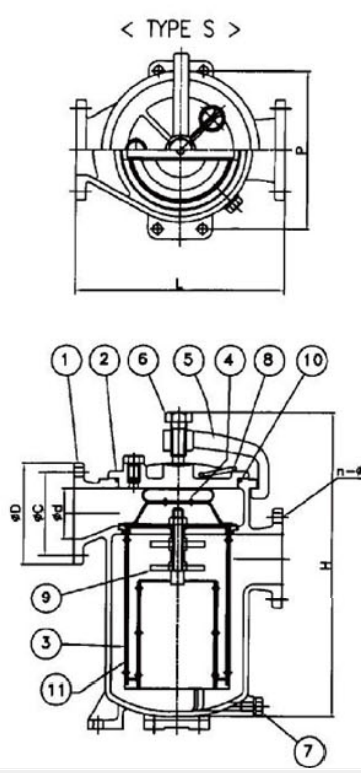

Dimensions Specification:

RATING	SIZE	Ød	ØD	ØC	N-Øh	t	L	L1	H	P	Weight(kg)
JIS 5K(JIS F7206)	50A	50	130	105	4-15	16	280	140	395	200	25.8
	65A	65	155	120	4-15	18	340	170	495	245	43.6
	80A	80	180	145	4-19	18	370	185	525	280	51.0
	100A	100	200	165	8-19	20	420	210	630	315	107
	125A	125	235	200	8-19	20	450	225	745	345	153
	150A	150	265	230	8-23	22	570	285	870	435	244
	200A	200	320	280	8-23	24	470	235	970	370	154
	250A	250	385	345	12-23	26	700	350	1140	520	262
	300A	300	430	390	12-23	28	800	400	1220	545	453
RATING	SIZE	Ød	ØD	ØC	N-Øh	t	L	L1	H	P	Weight(kg)
JIS 10K(JIS F7206)	50A	50	155	120	4-19	18	340	170	495	245	27.1
	65A	65	175	140	4-19	18	280	140	395	200	45.78
	80A	80	185	150	8-19	18	370	185	525	280	53.55
	100A	100	210	175	8-19	20	420	210	630	315	84
	125A	125	250	210	8-23	22	450	225	745	345	112.30
	150A	150	320	280	8-23	24	570	285	970	435	253
	200A	200	330	290	12-23	24	450	225	970	345	116.15
	250A	250	400	355	12-25	26	700	350	1140	520	275.1
	300A	300	445	400	18-25	28	800	400	1220	545	475.65
