JIS F7208 Duplex Oil Strainer
Materials of main parts
Body Material: Cast Iron
Cover Material: Cast Iron
Strainer Cylinder Material: Steel
Plug Material: Brass
Overview
Application:This JIS F7208 Duplex Oil Strainer is designed for marine applications involving fuel oil and lubrication oil.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | CAST IRON |
2 | COVER | CAST IRON |
3 | UPPER COCK COVER | CAST IRON |
4 | LOWER COCK COVER | CAST IRON |
5 | COCK | BRONZE |
6 | COCK SHAFT | STEEL |
7 | COCK CHAIN HANDLE | STEEL |
8 | COCK LIFT HANDLE | STEEL |
9 | COVER YOKE | DUCTILE IRON/STEEL |
10 | LIFTING THREAD | STEEL |
11 | SCREW RING | BRONZE |
12 | PACKING GLAND | BRONZE |
13 | STRAINER CYLINDER | STEEL |
14 | STRAINER HANDLE | STEEL |
15 | INDICATOR | BRASS |
16 | PLUG | BRASS |
17 | COVER PUSHING BOLT | BRASS |
18 | AIR VENT COCK | BRONZE |
19 | MAGNET | — |
20 | WIRE GAUZE | STAINLESS STEEL |
Technical Specifications:
Model: JIS F7208 Duplex Oil Strainer
Connection: JIS 5K/10K
Nominal Diameter: DN50~DN200
Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 5K
JIS 10K
HYDROSTATIC PRESS TEST(SHELL)
6
6
HYDROSTATIC PRESS TEST(COCK)
4.4
4.4
Dimensions Specification:
L:face to face
Ød: Bore Diameter
ØD:F.O.D
ØC:P.C.D
N-Øh:Number of holes and size
t: thickness
H:height
W:weight

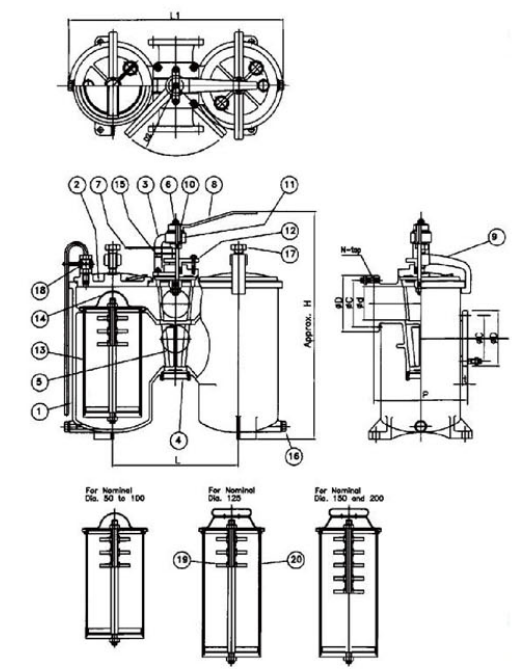

DIMENSIONS(Unit:mm)
RATING | SIZE | Ød | ØD | ØC | N-tap | t | L | L1 | H | P | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
JIS 5K(JIS F7208) | 50A | 50 | 130 | 105 | 4-M12 | 17 | 260 | 415 | 516 | 180 | 47 |
65A | 65 | 155 | 130 | 4-M16 | 18 | 324 | 514 | 661 | 215 | 83 | |
80A | 80 | 180 | 145 | 4-M16 | 18 | 380 | 600 | 685 | 245 | 132 | |
100A | 100 | 200 | 165 | 8-M16 | 20 | 456 | 718 | 816 | 285 | 202 | |
125A | 125 | 235 | 200 | 8-M16 | 20 | 544 | 852 | 952 | 330 | 321 | |
150A | 150 | 265 | 230 | 8-M16 | 22 | 680 | 1046 | 1299 | 410 | 567 | |
200A | 200 | 320 | 280 | 8-M20 | 24 | 820 | 1250 | 1520 | 490 | 1185 | |
RATING | SIZE | Ød | ØD | ØC | N-tap | t | L | L1 | H | P | Weight(kg) |
JIS 10K(JIS F7208) | 50A | 50 | 155 | 120 | 4-M16 | 17 | 260 | 415 | 516 | 180 | 47 |
65A | 65 | 175 | 140 | 4-M16 | 18 | 324 | 514 | 661 | 215 | 83 | |
80A | 80 | 185 | 150 | 8-M16 | 18 | 380 | 600 | 685 | 245 | 132 | |
100A | 100 | 210 | 175 | 8-M16 | 20 | 456 | 718 | 816 | 285 | 202 | |
125A | 125 | 250 | 210 | 8-M16 | 20 | 544 | 852 | 952 | 330 | 321 | |
150A | 150 | 280 | 240 | 8-M20 | 22 | 680 | 1046 | 1299 | 410 | 567 | |
200A | 200 | 330 | 290 | 12-M20 | 24 | 820 | 1250 | 1520 | 490 | 1185 |
