JIS F7206 Marine Rose Box
Compliant with the JIS F7206 standard, this Marine Rose Box is built for harsh seawater environments. Available in sizes ranging from 40A to 300A and rated for a hydrostatic test pressure of 7.4 kgf/cm², its robust galvanized steel body ensures excellent corrosion resistance and reliable performance.
Overview
Application:This JIS F7206 Marine Rose Box is designed for marine applications involving seawater and fresh water.
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | STRAINER PLATE | GALVANIZING STEEL |
2 | STRAINER PLATE | GALVANIZING STEEL |
3 | BOTTOM PLATE | GALVANIZING STEEL |
4 | LOCKING BAR | GALVANIZING STEEL |
5 | SUPPORT PIECE | GALVANIZING STEEL |
Technical Specifications:
Model: JIS F7206 Marine Rose Box
Connection: JIS 5K
Nominal Diameter: DN40~DN300
Dimensions Specification:
L:face to face
Ød: Bore Diameter
ØD:F.O.D
ØC:P.C.D
N-Øh:Number of holes and size
t: thickness
H:height
W:weight

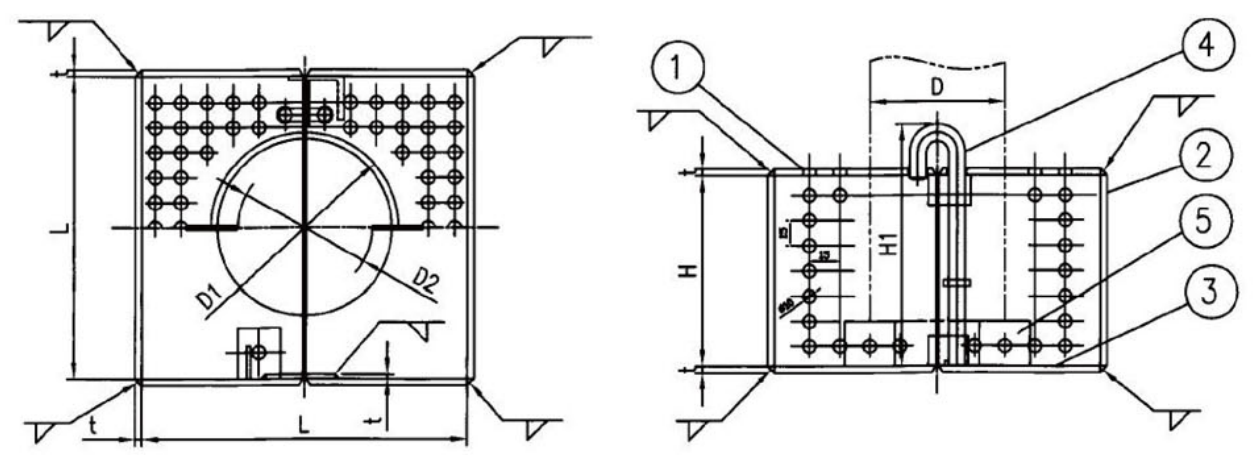

DIMENSIONS(Unit:mm)
SIZE | D | D1 | D2 | H | H1 | H2 | t | L |
|---|---|---|---|---|---|---|---|---|
40A | 48.5 | 52 | 25 | 65 | 90 | 28 | 3.2 | 95 |
50A | 60.5 | 65 | 25 | 80 | 105 | 35 | 3.2 | 110 |
65A | 76.3 | 82 | 45 | 95 | 120 | 35 | 3.2 | 140 |
80A | 89.1 | 94 | 50 | 110 | 135 | 35 | 3.2 | 170 |
100A | 114.3 | 120 | 80 | 140 | 165 | 40 | 3.2 | 200 |
125A | 139.8 | 145 | 105 | 170 | 200 | 40 | 3.2 | 260 |
150A | 165.2 | 170 | 125 | 200 | 230 | 40 | 3.2 | 320 |
200A | 216.3 | 222 | 180 | 260 | 300 | 55 | 4.5 | 380 |
250A | 267.4 | 272 | 225 | 320 | 360 | 55 | 4.5 | 440 |
300A | 318.5 | 325 | 280 | 350 | 400 | 65 | 4.5 | 500 |
