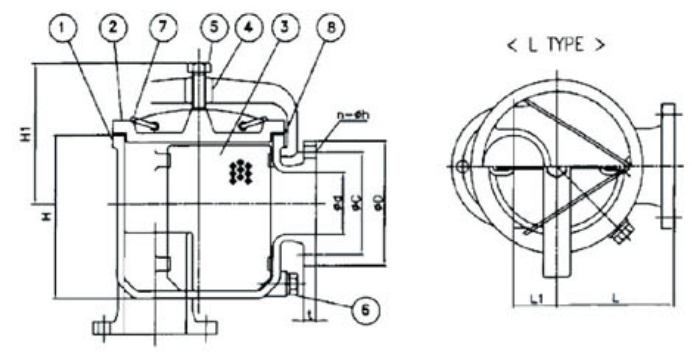

JIS F7203 Marine Mud Box

Materials of main parts

Body Material: Cast Iron

Cover Material: Cast Iron

Strainer Plate Material: Steel/Stainless Steel

Gasket Material: Rubber

Application:This JIS F7203 Marine Mud Box is designed for marine applications involving seawater, fresh water, bilge water.

Material Specification:

Technical Specifications:

Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 5K
JIS 10K
HYDROSTATIC PRESS TEST(SHELL)
1
1

RATING	JIS 5K	JIS 10K
HYDROSTATIC PRESS TEST(SHELL)	1	1

Dimensions Specification:

DIMENSIONS(Unit:mm)

RATING	SIZE	Ød	ØD	ØC	N-Øh	t	L	L1	H	H1	Weight(kg)
JIS 5K(JIS F7203)	40A	40	120	95	4-15	16	90	22.5	128	145	10.5
	50A	50	130	105	4-15	16	120	40	160	145	17.7
	65A	65	155	130	4-15	18	150	42.5	206	180	29.7
	80A	80	180	145	4-19	18	160	55	231	195	34.3
	100A	100	200	165	8-19	20	190	70	262	225	48.2
	125A	125	235	200	8-19	20	230	87.5	326	275	73.5
	150A	150	265	230	8-19	22	280	110	437	320	156
	200A	200	320	280	8-23	24	330	135	540	405	305
	250A	250	385	345	12-23	26	380	155	680	525	435
RATING	SIZE	Ød	ØD	ØC	N-Øh	t	L	L1	H	H1	Weight(kg)
JIS 10K(JIS F7203)	40A	40	140	105	4-19	16	90	22.5	128	145	11.02
	50A	50	155	120	4-19	16	120	40	160	145	18.59
	65A	65	175	140	4-19	18	150	42.5	206	180	31.19
	80A	80	185	150	8-19	18	160	55	231	195	36.02
	100A	100	210	175	8-19	20	190	70	262	225	50.6
	125A	125	250	210	8-23	20	235	87.5	354	275	97.45
	150A	150	280	240	8-23	22	280	110	437	320	163.8
	200A	200	330	290	12-23	26	330	135	540	405	320.25
	250A	250	400	355	12-25	28	380	155	680	525	456.8
