JIS F7202 Duplex Oil Strainer

Materials of main parts

Body Material: Cast Iron

Cover Material: Cast Iron

Strainer Cylinder Material: Stainless Steel

Plug Material: Rolled Steel

Application:This JIS F7202 Duplex Oil Strainer is designed for marine applications involving fuel oil and lubrication oil.

Material Specification:

NO.	PARTS	MATERIAL
1	BODY	CAST IRON
2	BODY COVER	CAST IRON
3	COCK PLUG	BRONZE
4	PACKING GLAND	CAST IRON
5	COOK HANDLE	CARBON STEEL
6	PACKING	ASBESTOS
7	WASHER	ROLLED STEEL
8	STRAINER CYLINDER	STAINLESS STEEL
9	WIRE GAUZE	STAINLESS STEEL
10	STRAINER CYLINDER RING	ROLLED STEEL
11	BOTTOM PLATE OF STRAINER CYLINDER	ROLLED STEEL
12	WIRE GAUZE HOLDER	ROLLED STEEL
13	STRAINER HANDLE AND CYLINDER HOLDER	SPRING STEEL
14	CROSS-RECESSED PAN-HEAD MACHINE SCREW	ROLLED STEEL
15	SPRING WASHER	CARBON STEEL
16	COVER	ROLLED STEEL
17	COVER RETAINER BOLT	ROLLED STEEL
18	AIR COCK	BRONZE
19	AIR PLUG	ROLLED STEEL
20	GASKET	ASBESTOS
21	STUD AND NUT	ROLLED STEEL
22	PLUG	ROLLED STEEL
23	GASKET	ASBESTOS
24	O-RING	ROLLED STEEL
25	HEXAGON NUT	ROLLED STEEL
26	AIR VENT PIPE	CARBON STEEL
27	PACKING GLAND	CAST IRON
28	COOK HANDLE	ROLLED STEEL
29	O-RING	ROLLED STEEL
30	STOPPER	ROLLED STEEL
31	CROSS-RECESSED PAN-HEAD MACHINE SCREW	ROLLED STEEL
32	BOLT AND NUT	ROLLED STEEL
33	MAGNET	MAGNETIC STEEL
34	BOLT AND NUT	ROLLED STEEL

Technical Specifications:

FLUID CONDITION	MAX.WORKING PRESSURE (kgf/cm²)
OIL OF 80℃ AND UNDER	4 kg/cm²

Dimensions Specification:

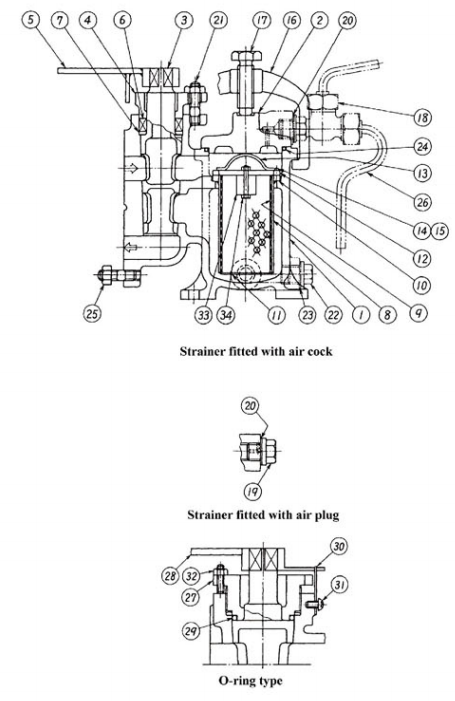

Drawing of JIS F7202 Duplex Oil Strainer.png

DIMENSIONS(Unit:mm)
