JIS F7121 Can Water Filter
Materials of main parts
Body Material: Cast Iron
Cover Material: Cast Iron
Strainer Cylinders Material: Steel/Stainless Steel
Gasket Material: Rubber
Overview
Application:This JIS F7121 Can Water Filter is designed for marine applications involving seawater, oil, and steam (up to 220°C).
Material Specification:

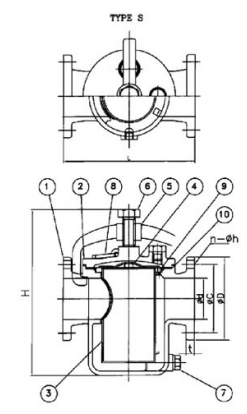

NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | CAST IRON |
2 | COVER | CAST IRON |
3 | STRAINER CYLINDER | STEEL/STAINLESS STEEL |
4 | STRAINER HANDLE | STEEL/STAINLESS STEEL |
5 | COVER PUSHER | DUCTILE IRON/STEEL |
6 | PUSHING BOLT | STEEL/BRASS |
7 | PLUG | BRASS |
8 | HANDLE OF COVER | STEEL |
9 | SET SCREW | STEEL/STAINLESS STEEL |
10 | GASKET | RUBBER |
Technical Specifications:
Model: JIS F7121 Can Water Filter
Connection: JIS 5K/10K
Nominal Diameter: DN25~DN100
Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 5K
JIS 10K
HYDROSTATIC PRESS TEST(SHELL)
3
3
Dimensions Specification:
L:face to face
Ød: Bore Diameter
ØD:F.O.D
ØC:P.C.D
N-Øh:Number of holes and size
t: thickness
H:height
W:weight
DIMENSIONS(Unit:mm)
RATING | SIZE | Ød | ØD | ØC | N-Øh | t | L | L1 | H | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
JIS 5K(JIS F7121) | 25A | 25 | 95 | 75 | 4-12 | 14 | 170 | 85 | 180 | 5.08 |
32A | 40 | 115 | 90 | 4-15 | 16 | 190 | 95 | 215 | 8.23 | |
40A | 40 | 120 | 95 | 4-15 | 16 | 190 | 95 | 215 | 8.43 | |
50A | 50 | 130 | 105 | 4-15 | 16 | 200 | 100 | 240 | 10.3 | |
65A | 65 | 155 | 130 | 4-15 | 18 | 250 | 125 | 305 | 18.5 | |
80A | 80 | 180 | 145 | 4-19 | 18 | 270 | 135 | 340 | 24 | |
100A | 100 | 200 | 165 | 8-19 | 20 | 320 | 160 | 400 | 35.7 | |
RATING | SIZE | Ød | ØD | ØC | N-Øh | t | L | L1 | H | Weight(kg) |
JIS 10K(JIS F7121) | 25A | 25 | 125 | 90 | 4-19 | 14 | 170 | 85 | 180 | 5.34 |
32A | 40 | 135 | 100 | 4-19 | 16 | 120 | 95 | 215 | 8.65 | |
40A | 25 | 125 | 105 | 4-19 | 16 | 130 | 95 | 215 | 8.85 | |
50A | 32 | 135 | 120 | 4-19 | 16 | 160 | 100 | 240 | 10.82 | |
65A | 40 | 140 | 140 | 4-19 | 18 | 180 | 125 | 305 | 19.45 | |
80A | 80 | 185 | 150 | 8-19 | 18 | 270 | 135 | 340 | 25.2 | |
100A | 100 | 210 | 175 | 8-19 | 20 | 320 | 160 | 400 | 37.5 |
