JIS F3056 Marine Foot Valve

The JIS F3056 marine foot valve is a one-way check valve designed and manufactured according to the JIS F3056, specifically for use at the suction end of marine piping systems. It is typically installed vertically at the end of the suction pipe and submerged below the liquid surface. Its core function is to prevent liquid in the suction pipe from flowing back into the tank or water source after the pump stops operating, thus ensuring the piping system is always "full" so that the pump can start normally at any time and avoids "cavitation" failures caused by air intake.

Overview

Key Product Characteristics

Applications: Specifically designed for use at the pump suction end in marine pipelines for conveying media such as water and oil.

Valve Body Structure: Typically consists of two parts, upper and lower, facilitating inspection and maintenance of internal components.

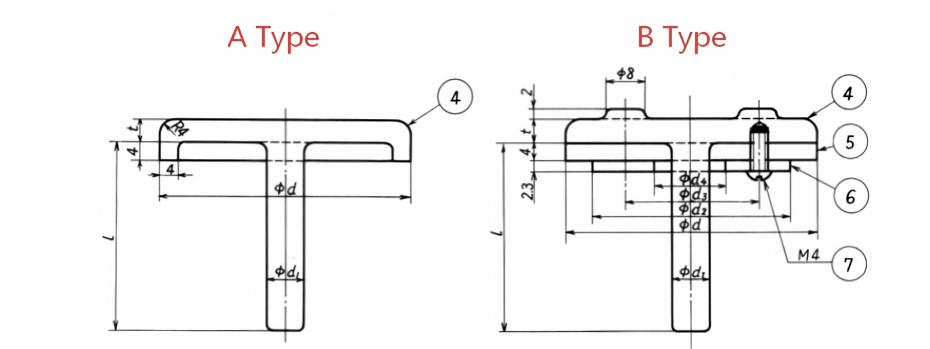

Classification: The 1995 standard classifies valves into Type A (without valve gasket) and Type B (with valve gasket). The valve gasket is usually made of oil-resistant synthetic rubber.

Types of JIS F3056 Marine Foot Valve.jpg

Common Materials: Primarily bronze castings, such as BC6, conforming to relevant material standards such as JIS H 5111.

Pressure and Dimensions: Flange standards are typically JIS B2220 5K or 10K pressure ratings, with common nominal diameters ranging from DN40 to DN80.

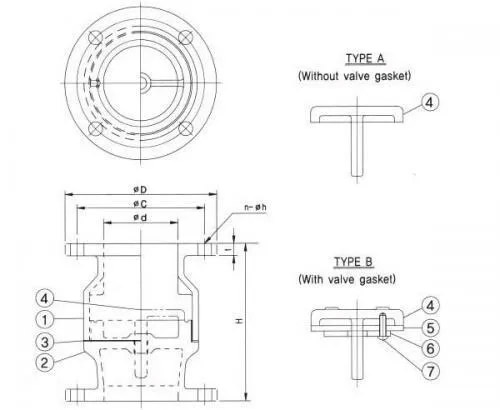

Reference Drawing

Drawing of JIS F3056 Marine Foot Valve1.jpg

Main Parameters

Nominal Pressure	Nominal Diameter	d	D	C	N-h	t	H
5K	40A	40	120	95	4-15	12	130
	50A	50	130	105	4-15	14	142
	80A	80	180	145	4-19	14	194
10K	40A	40	140	105	4-19	14	130
	50A	50	155	120	4-19	14	142
	80A	80	185	150	8-19	16	194
