JIS 5K Swing Check Valve

JIS 5K swing check valve uses a swing disc that opens and closes with medium flow, enabling automatic one-way sealing without manual operation. Its wide straight-through inner cavity effectively lowers pressure loss when the medium passes through the valve body.

Overview

Application:It is installed on low-pressure fresh water, ballast water and drainage pipelines of various ships to avoid liquid backflow and system reverse impact. It is also applicable to municipal and general industrial pipelines needing passive anti-reflux protection.

Material Specification:

Part Name	Material	Code
1-Body	Cast Iron	FC20
2-Hinge	Brass	C3771BD
3-Disc	Bronze	BC6
4-Seat	Bronze	BC6

Technical Specification:

Nominal Pressure		5K
Hydraulic Inspection	Body	1.03 [10.5]
Hydraulic Inspection	Seat	0.76 [7.7]

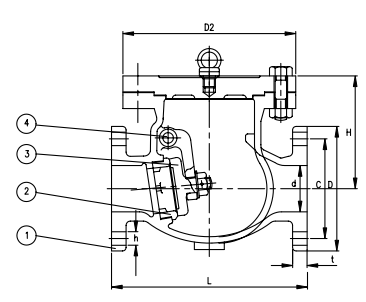

Drawing:

Dimensions:

Type	Size	L	D	C	No.	h	t	H	D₂	Kg
F7372 5K	50	190	155	120	4	19	16	97	135	9.06
	65	220	175	140	4	19	18	119	155	13.9
	80	250	185	150	8	19	18	129	185	19.1
	100	280	210	175	8	19	18	146	205	27.1
	125	330	250	210	8	23	20	171	235	39
	150	380	280	240	8	23	22	198	265	53.7
	200	460	330	290	12	23	22	235	300	94.4
	250	550	400	355	12	25	24	290	390	150
