JIS 5K Large Size Can Water Filter
JIS 5K large size can water filter adopts standard JIS F7121 specification, featuring high-flow large-caliber design, premium cast iron body and corrosion-resistant SUS304 filter mesh. It delivers stable 5K pressure resistance, excellent dirt interception capacity and long service life for continuous fluid filtration.
Overview
Application:It is widely applied for seawater and freshwater filtration in various ship and marine engineering pipeline systems. The filter effectively blocks solid impurities to protect pumps, valves and precision instruments, reducing equipment failure and ensuring safe pipeline operation.
Material Specification:
| Part No. | Part Name | Material |
| 1 | Body | Cast Iron |
| 2 | Cover | Cast Iron |
| 3 | Strainer Cylinder | Steel / Stainless Steel |
| 4 | Strainer Handle | Steel / Stainless Steel |
| 5 | Hinge Bolt | Brass |
| 6 | Eye Bolt | Forged Steel |
| 7 | Plug | Brass |
| 8 | Pin | Brass |
| 9 | Nut | Brass / Stainless Steel |
| 10 | Gasket | Rubber |
| 11 | Plug | Brass |
Technical Specification:
| RATING | JIS 5K |
| HYDROSTATIC PRESS TEST(SHELL) | 3 |

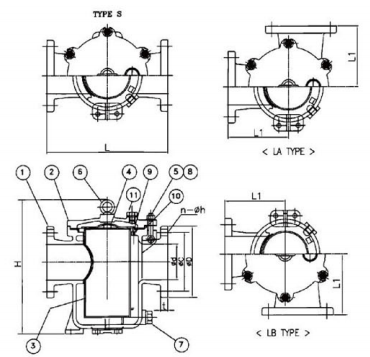

Drawing:
Dimensions:
| SIZE | Ød | ØD | ØC | N-Øh | t | L | L1 | H | Weight(kg) |
| 125A | 125 | 235 | 200 | 8-19 | 20 | 400 | 200 | 485 | 62.2 |
| 150A | 150 | 265 | 230 | 8-19 | 22 | 460 | 230 | 575 | 88.6 |
| 200A | 200 | 320 | 280 | 8-23 | 24 | 550 | 275 | 665 | 141 |
| 250A | 250 | 385 | 345 | 12-23 | 26 | 680 | 340 | 825 | 246 |
| 300A | 300 | 430 | 390 | 12-23 | 28 | 760 | 380 | 920 | 321 |
| 350A | 335 | 480 | 435 | 12-25 | 30 | 820 | 410 | 1030 | 428 |
| 400A | 380 | 540 | 495 | 16-25 | 30 | 880 | 440 | 1135 | 518 |
