JIS 5K Hose Globe Valve
JIS 5K cast iron hose globe valve features an integrated hose connection port for direct and convenient hose piping assembly. It adopts sturdy cast iron body and precise globe disc, delivering reliable flow regulation and tight shut-off under 0.5MPa low-pressure operation.
Overview
Application:Mainly applied for low-pressure deck washdown, fire water and fresh water auxiliary pipelines on fishing vessels and small marine crafts. Suitable for general marine low-pressure piping systems that require flexible hose connection and simple flow control.
Material Specification:
| NO. | PARTS | MATERIAL |
| 1 | BODY | BRONZE |
| 2 | BONNET | BRONZE |
| 3 | DISC | BRONZE |
| 4 | DISC NUT | BRONZE/BRASS |
| 5 | PACKING GLAND | BRONZE/BRASS |
| 6 | STEM | BRASS |
| 7 | HANDWHEEL | CAST IRON |
| 8 | HEXAGON NUT | STEEL |
| 9 | HEXAGON NUT | STEEL |
| 10 | HEXAGON NUT | STEEL |
| 11 | STUD BOLT | STEEL |
| 12 | STUD BOLT | STEEL |
| 13 | SPLIT PIN | BRASS |
| 14 | DISC LOCK WASHER | BRASS |
| 15 | PACKING | NON ASBESTOS |
| 16 | GASKET | NON ASBESTOS |
| 17 | WASHER | STEEL |
| 18 | BASE CONNECTION | BRONZE |
| 19 | CAP | BRONZE |
| 20 | COUPLING RING | BRONZE |
| 21 | SET RING | BRONZE |
| 22 | SET SCREW | BRASS |
| 23 | CHAIN | STAINLESS WIRE |
| 24 | GASKET | RUBBER |
| 25 | GASKET | NON ASBESTOS |
| 26 | VALVE SEAT | BRONZE |
Technical Specification:
Pressure Ratings (Max Working Pressure Unit:kgf/cm²)
| Rating | JIS 5K |
| Pulsation Water | 5 |
| Non-Shock Water up to 120 ℃ | 7 |
Hydrostatic Test Pressure (kgf/cm²):
| RATING | JIS 5K |
| HYDROSTATIC PRESS TEST(SHELL) | 10.5 |
| HYDROSTATIC PRESS TEST(SEAT) | 7.7 |

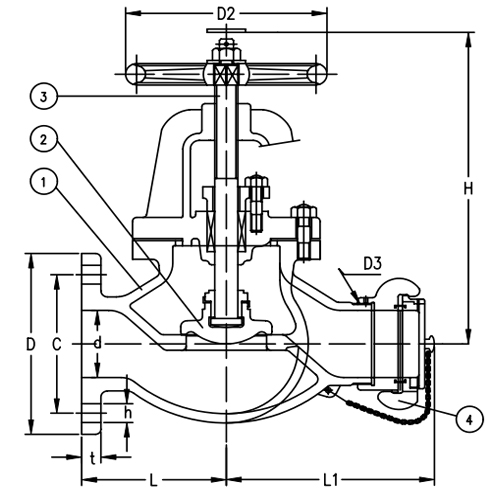

Drawing:
Dimensions:
| RATING | SIZE | Ød | ØD | ØC | N-Øh | t | L1 | L | H | H1 | Weight (kg) | Weight (kg) |
| JIS 5K | 50A | 50 | 130 | 105 | 4-15 | 16 | 105 | 100 | 270 | 240 | 14.7 | 12.8 |
| 65A | 60 | 155 | 130 | 4-15 | 22 | 135 | 130 | 310 | 270 | 28.2 | 24.3 |
