JIS 5K Bronze Globe Screw-Down Check Valve | Dual-Function Marine JIS Stop Check Valve

JIS 5K Globe Screw-Down Check Valves

Our JIS 5K bronze globe screw-down check valve combines manual shut-off/throttling capability with automatic backflow prevention in a single bronze body, manufactured to Japanese Industrial Standards for reliable performance in seawater and corrosive environments. Featuring a precision-machined bronze disc and seat with a screw-down stem mechanism, this dual-function valve provides both positive flow control when operated manually and dependable non-return protection when left in the open position, eliminating the need for separate stop and check valves.

Overview

Application: Widely installed on ships, offshore platforms and marine vessels in seawater systems, cooling water circuits, fuel oil lines and ballast water systems where both flow regulation and backflow prevention are required at the same pipeline location. Also commonly used in coastal facilities, desalination plants and Japanese-standard marine engineering projects throughout Southeast Asia, where space is limited and installing separate stop and check valves would be impractical or cost-prohibitive.

Material Specification:

Part Name	Material	Material Code
Body	Bronze	BC6
Disc	Bronze	BC6
Stem	Brass	C3771BD

Technical Specifications:

Nominal Pressure		5K
Hydraulic Inspection	Body	12 kg
Hydraulic Inspection	Seat	8 kg

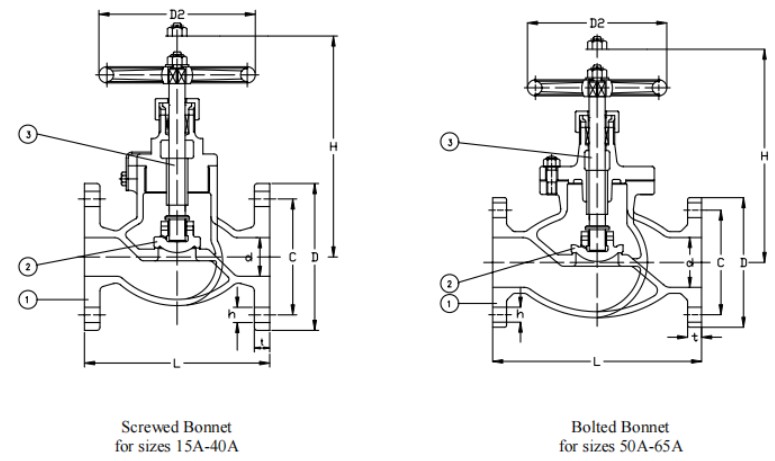

Drawing:

JIS 5K Globe Screw-Down Check ValvesDRAW.jpg

Dimensions:

Type	Size	L	D	C	No.	h	t	H	D₂
5K	15	100	80	60	4	12	9	130	80
	20	110	85	65	4	12	10	140	100
	25	120	95	75	4	12	10	160	125
	32	140	115	90	4	15	12	170	125
	40	160	120	95	4	15	12	190	140
	50	210	130	105	4	15	14	235	140
	65	250	155	130	4	15	14	260	160
