JIS 5K Cast Steel Globe Valve

JIS 5K cast steel globe valve adopts premium cast steel body, featuring higher toughness and corrosion resistance than traditional cast iron valves. Its precision sealing structure ensures stable throttling performance and zero leakage shut-off during long-term operation.

Overview

Application:It is widely used for fluid regulation and cut-off on ship piping, steam systems and slightly corrosive industrial medium pipelines. Ideal for working environments that require durable steel valves instead of brittle cast iron valves.

Material Specification:

Part No.	Part Name	Material	Material Code
1	Body	Cast Steel	SC46
2	Seat	Stainless Steel	SCS2
3	Disc	Stainless Steel	SCS2
4	Stem	Stainless Steel	SUS403

Technical Specification:

Test Pressure MPa [kgf/cm²]
Body	1.04 [10.5]
Seat	0.76 [7.7]

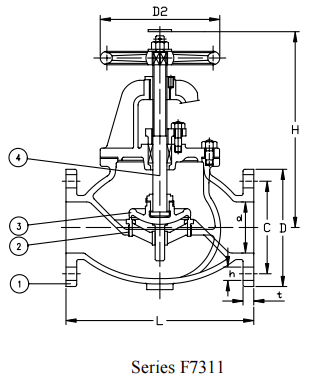

Drawing:

Dimensions:

Size	L	H	Kg	D	C	No.	h	t	D₂
50	210	270	15.5	130	105	4	15	14	160
65	250	300	25.8	155	130	4	15	14	180
80	280	310	32.3	180	145	4	19	14	180
100	340	360	47.6	200	165	8	19	16	224
125	410	390	71.3	235	200	8	19	16	250
150	480	445	86	265	230	8	19	18	280
200	570	530	147	320	280	8	23	20	315
250	740	791	230	385	345	12	23	22	355
300	840	929	309	430	390	12	23	22	400
