JIS 5K Cast Steel Angle Valve

JIS 5K cast steel angle valve adopts robust cast steel body, effectively overcoming the brittleness defects of cast iron valves for longer service life. Its 90-degree integrated flow channel reduces fluid resistance and realizes reliable one-way cut-off and throttling performance.

Overview

Application:It is specially designed for corner installation of marine low-pressure water and auxiliary process pipelines. Perfect for corrosive and temperature-variable working conditions where ordinary cast iron angle valves cannot adapt stably.

Material Specification:

Part No.	Part Name	Material	Material Code
1	Body	Cast Steel	SC46
2	Seat	Stainless Steel	SCS2
3	Disc	Stainless Steel	SCS2
4	Stem	Stainless Steel	SUS403

Technical Specification:

Test Pressure MPa [kgf/cm2]
Body	1.04 [10.5]
Seat	0.76 [7.7]

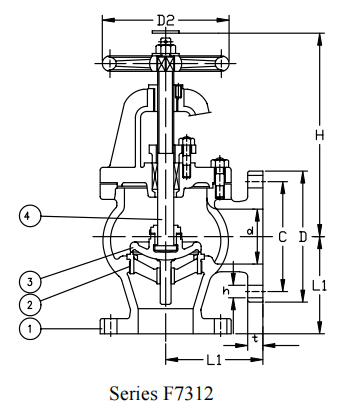

Drawing:

Dimensions:

Size	L	H	Kg	D	C	No.	h	t	D₂
50	100	240	13.3	130	105	4	15	14	160
65	115	255	19.5	155	130	4	15	14	180
80	130	265	25.5	180	145	4	19	14	180
100	150	310	34.8	200	165	8	19	16	224
125	170	330	46.5	235	200	8	19	16	250
150	190	380	66.5	265	230	8	19	18	280
200	220	450	111	320	280	8	23	20	315
250	275	641	178	385	345	12	23	22	355
300	310	748	275	430	390	12	23	22	400
