JIS 5K Cast Iron Gate valves

JIS 5K cast iron gate valve adopts durable FC20 cast iron body with stable structural strength for 0.5MPa low-pressure operation. Equipped with high wear-resistant bronze seat and disc, it ensures tight sealing and long-term stable switching performance.

Overview

Application:It is widely used for full open and full close isolation on ship fresh water, ballast water and drainage pipelines. It is suitable for general marine and industrial piping systems that require simple and reliable fluid cut-off control.

Material Specification:

Part No.	Part Name	Material	Material Code
1	Body	Cast Iron	FC20
2	Seat	Bronze	BC6
3	Disc	Bronze	BC6
4	Stem	Brass	C3771BD

Technical Specification:

Nominal Diameter	Test Pressure MPa [kgf/cm]
Nominal Diameter	Body	Seat
400 or less	1.03 [10.5]	0.76 [7.7]
450 to 500	0.74 [7.5]	0.54 [5.5]

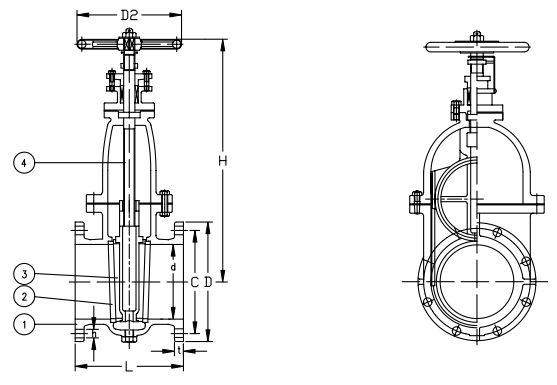

Drawing:

Dimensions:

Size	L	D	C	No.	h	t	H	D₂	Kg
50	180	130	105	4	15	16	285	125	13.5
65	190	155	130	4	15	18	330	140	19
80	200	180	145	4	19	18	380	160	24.2
100	230	200	165	8	19	20	430	180	35.3
125	250	235	200	8	19	20	495	200	48.1
150	270	265	230	8	19	22	560	224	65.3
200	290	320	280	8	23	24	680	280	103
250	330	385	345	12	23	26	800	355	164
300	370	430	390	12	23	28	920	400	236
350	410	480	435	12	25	30	1000	450	307
400	470	540	495	16	25	30	1100	500	405
450	500	605	555	16	25	30	1400	560	581
500	550	655	605	20	25	32	1500	560	725
