JIS 5K Angle Valves
Our JIS 5K bronze angle valve is manufactured to Japanese Industrial Standards with a high-quality bronze body and standard flanged ends, featuring a 90-degree angle design that provides reliable shut-off and flow direction change at pipeline corners while offering superior corrosion resistance in seawater and mildly corrosive environments. With its lightweight construction, standard flange dimensions and lower material cost compared to 16K class valves, this bronze angle valve delivers dependable performance for low-pressure applications where easy installation and corrosion resistance are priorities.
Overview
Application: Widely used for low-pressure seawater systems, cooling water circuits, general service piping and coastal facility applications on ships, offshore platforms and industrial plants where system pressures are moderate and 16K class heavy-duty valves would be unnecessarily oversized and costly. Also commonly specified in shipbuilding projects, desalination pretreatment systems, and Japanese-standard marine facilities throughout Southeast Asia, particularly for secondary piping lines and non-critical service where corrosion resistance and cost-effectiveness are the primary requirements.
Material Specification:
| Part Name | Material | Material Code |
| Body | Bronze | BC6 |
| Disc | Bronze | BC6 |
| Stem | Brass | C3771BD |
Technical Specifications:
| Nominal Pressure | 5K | |
| Hydraulic Inspection | Body | 12 kg |
| Seat | 8 kg | |

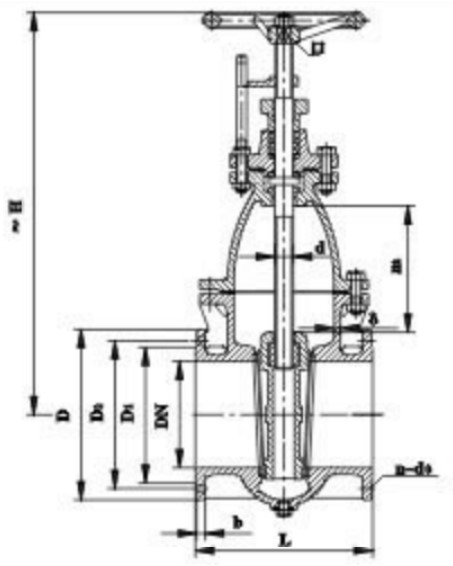

Drawing:
Dimensions:
| Type | Size | L | D | C | No. | h | t | H | D₂ |
| 5K | 15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
| 20 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 100 | |
| 25 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 | |
| 32 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 125 | |
| 40 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 | |
| 50 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 140 | |
| 65 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 160 |
