JIS 10K Small Size Can Water Filter
JIS 10K can water filter adopts thickened reinforced housing to withstand medium working pressure with stable structural performance. The fine mesh basket core efficiently intercepts solid particles while maintaining smooth fluid circulation.
Overview
Application:It is commonly installed on ship cooling water, fire water and process water piping systems. It serves as essential pipeline protection to block debris and extend the service life of marine valves and pumps.
Material Specification:
| NO. | PARTS | MATERIAL |
| 1 | BODY | CAST IRON |
| 2 | COVER | CAST IRON |
| 3 | STRAINER CYLINDER | STEEL/STAINLESS STEEL |
| 4 | STRAINER HANDLE | STEEL/STAINLESS STEEL |
| 5 | COVER PUSHER | DUCTILE IRON/STEEL |
| 6 | PUSHING BOLT | STEEL/BRASS |
| 7 | PLUG | BRASS |
| 8 | HANDLE OF COVER | STEEL |
| 9 | SET SCREW | STEEL/STAINLESS STEEL |
| 10 | GASKET | RUBBER |
Technical Specification:
| RATING | JIS 10K |
| HYDROSTATIC PRESS TEST(SHELL) | 3 |

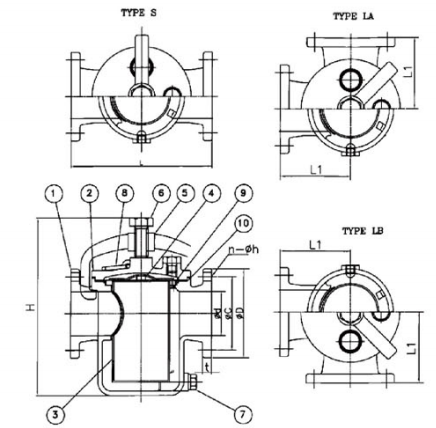

Drawing:
Dimensions:
| RATING | SIZE | Ød | ØD | ØC | N-Øh | t | L | L1 | H | Weight(kg) |
| JIS 10K (JIS F7121) | 25A | 25 | 125 | 90 | 4-19 | 14 | 170 | 85 | 180 | 5.34 |
| 32A | 40 | 135 | 100 | 4-19 | 16 | 120 | 95 | 215 | 8.65 | |
| 40A | 25 | 125 | 105 | 4-19 | 16 | 130 | 95 | 215 | 8.85 | |
| 50A | 32 | 135 | 120 | 4-19 | 16 | 160 | 100 | 240 | 10.82 | |
| 65A | 40 | 140 | 140 | 4-19 | 18 | 180 | 125 | 305 | 19.45 | |
| 80A | 80 | 185 | 150 | 8-19 | 18 | 270 | 135 | 340 | 25.2 | |
| 100A | 100 | 210 | 175 | 8-19 | 20 | 320 | 160 | 400 | 37.5 |
