JIS 10K Large Size Can Water Filter
JIS 10K large size can water filter complies with JIS F7121 marine standard, built with thickened cast iron body and durable SUS304 stainless steel mesh. It boasts outstanding 10K high pressure resistance, high flow rate and stable filtration performance for harsh marine working conditions.
Overview
Application:It is specially designed for high-pressure seawater and freshwater circulation filtration on cargo ships, passenger vessels and offshore engineering equipment. It reliably filters granular impurities in pipelines, effectively protecting high-pressure hydraulic systems and core marine equipment from abrasion and damage.
Material Specification:
| Part No. | Part Name | Material |
| 1 | Body | Cast Iron |
| 2 | Cover | Cast Iron |
| 3 | Strainer Cylinder | Steel / Stainless Steel |
| 4 | Strainer Handle | Steel / Stainless Steel |
| 5 | Hinge Bolt | Brass |
| 6 | Eye Bolt | Forged Steel |
| 7 | Plug | Brass |
| 8 | Pin | Brass |
| 9 | Nut | Brass / Stainless Steel |
| 10 | Gasket | Rubber |
| 11 | Plug | Brass |
Technical Specification:
| RATING | JIS 10K |
| HYDROSTATIC PRESS TEST(SHELL) | 3 |

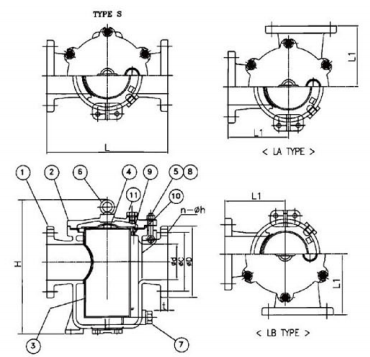

Drawing:
Dimensions:
| SIZE | Ød | ØD | ØC | N-Øh | t | L | L1 | H | Weight(kg) |
| 125A | 125 | 250 | 210 | 8-23 | 20 | 400 | 200 | 485 | 65.32 |
| 150A | 150 | 280 | 240 | 8-23 | 22 | 460 | 230 | 575 | 93.03 |
| 200A | 200 | 330 | 290 | 12-23 | 24 | 550 | 275 | 665 | 148.05 |
| 250A | 250 | 400 | 355 | 12-25 | 26 | 680 | 340 | 825 | 258.3 |
| 300A | 300 | 445 | 400 | 16-25 | 28 | 760 | 380 | 920 | 337.05 |
| 350A | 335 | 490 | 445 | 16-25 | 30 | 820 | 410 | 1030 | 449.4 |
| 400A | 380 | 560 | 510 | 16-27 | 30 | 880 | 440 | 1135 | 544 |
