JIS 10K Hose Globe Valve
JIS 10K hose globe valve adopts integral bronze casting body with reinforced wall thickness, greatly improving pressure bearing capacity compared with 5K low-pressure counterparts. It is equipped with a standard hose quick connector on the outlet end to realize fast pipeline connection and reliable sealing during frequent opening and closing.
Overview
Application:It is widely matched with medium-pressure ballast water, fire fighting water and deck cleaning piping systems on cargo ships, bulk carriers and offshore work vessels. Suitable for marine piping projects that require stable pressure resistance and flexible hose connection for fluid cut-off and regulation.
Material Specification:
| NO. | PARTS | MATERIAL |
| 1 | BODY | BRONZE |
| 2 | BONNET | BRONZE |
| 3 | DISC | BRONZE |
| 4 | DISC NUT | BRONZE/BRASS |
| 5 | PACKING GLAND | BRONZE/BRASS |
| 6 | STEM | BRASS |
| 7 | HANDWHEEL | CAST IRON |
| 8 | HEXAGON NUT | STEEL |
| 9 | HEXAGON NUT | STEEL |
| 10 | HEXAGON NUT | STEEL |
| 11 | STUD BOLT | STEEL |
| 12 | STUD BOLT | STEEL |
| 13 | SPLIT PIN | BRASS |
| 14 | DISC LOCK WASHER | BRASS |
| 15 | PACKING | NON ASBESTOS |
| 16 | GASKET | NON ASBESTOS |
| 17 | WASHER | STEEL |
| 18 | BASE CONNECTION | BRONZE |
| 19 | CAP | BRONZE |
| 20 | COUPLING RING | BRONZE |
| 21 | SET RING | BRONZE |
| 22 | SET SCREW | BRASS |
| 23 | CHAIN | STAINLESS WIRE |
| 24 | GASKET | RUBBER |
| 25 | GASKET | NON ASBESTOS |
| 26 | VALVE SEAT | BRONZE |
Technical Specification:
Pressure Ratings (Max Working Pressure Unit:kgf/cm²)
| Rating | JIS 10K |
| Pulsation Water | 10 |
| Non-Shock Water up to 120 ℃ | 14 |
Hydrostatic Test Pressure (kgf/cm²):
| RATING | JIS 10K |
| HYDROSTATIC PRESS TEST(SHELL) | 21 |
| HYDROSTATIC PRESS TEST(SEAT) | 15.4 |

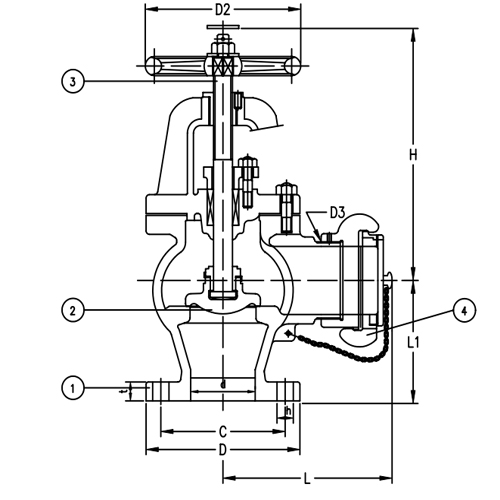

Drawing:
Dimensions:
| RATING | SIZE | Ød | ØD | ØC | N-Øh | t | L1 | L | H | H1 | Weight (kg) | Weight (kg) |
| JIS 10K | 50A | 50 | 155 | 120 | 4-19 | 20 | 110 | 120 | 285 | 255 | 18.9 | 17 |
| 65A | 60 | 175 | 140 | 4-19 | 22 | 135 | 130 | 310 | 270 | 28.2 | 24.3 |
