JIS 10K Cast Steel Vertical/Angle Storm Valves
JIS 10K cast steel storm valve adopts integral cast steel construction, offering higher impact resistance and pressure tolerance than conventional bronze valves. Its gravity self-closing mechanism ensures rapid reset and tight sealing for long-term stable drainage operation.
Overview
Application:It is widely used for overboard discharge and hull scupper drainage on medium-pressure marine and offshore piping systems. It effectively blocks storm surge and seawater backflow to protect ship internal pipelines under harsh sea working conditions.
Material Specification:
| Part No. | Part Name | Material | Material Code |
| 1 | Body | Cast Steel | SC49 |
| 2 | Seat | Rubber | NBR |
| 3 | Disc | Bronze | BC6 |
| 4 | Stem | Stainless Steel | SUS403 |
Technical Specification:
| Nominal Diameter | Test Pressure MPa (kgf/cm) |
| 50 to 200 | 5.1 |

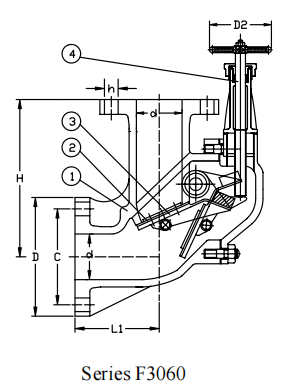

Drawing:
Dimensions:
| Size | H | D | C | No. | h | t | L₁ | D₂ | kg |
| 50 | 170 | 155 | 120 | 4 | 19 | 16 | 90 | 100 | 13 |
| 65 | 200 | 175 | 140 | 4 | 19 | 18 | 110 | 100 | 19 |
| 80 | 220 | 185 | 150 | 8 | 19 | 18 | 120 | 125 | 23.8 |
| 100 | 250 | 210 | 175 | 8 | 19 | 18 | 130 | 125 | 34.5 |
| 125 | 270 | 250 | 210 | 8 | 23 | 20 | 150 | 125 | 50 |
| 150 | 310 | 280 | 240 | 8 | 23 | 22 | 170 | 125 | 67 |
| 200 | 400 | 330 | 290 | 12 | 23 | 22 | 190 | 125 | 111 |
