JIS 10K Cast Steel Globe Valve

JIS 10K cast steel globe valve features a thickened cast steel body with excellent toughness, far outperforming cast iron valves in impact and corrosion resistance. Its precision matched valve disc and seat structure ensures stable throttling performance and durable tight sealing.

Overview

Application: It is widely used for cut-off and flow regulation on medium-pressure cooling water, process fluid and auxiliary pipelines of ships and offshore equipment. It is perfectly suitable for harsh working environments with temperature changes and slight corrosive media.

Material Specification:

Part No.	Part Name	Material	Material Code
1	Body	Cast Steel	SC46
2	Seat	Stainless Steel	SCS2
3	Disc	Stainless Steel	SCS2
4	Stem	Stainless Steel	SUS403

Technical Specification:

Test Pressure MPa [kgf/cm2]
Body	2.06 [21]
Seat	1.51 [15.4]

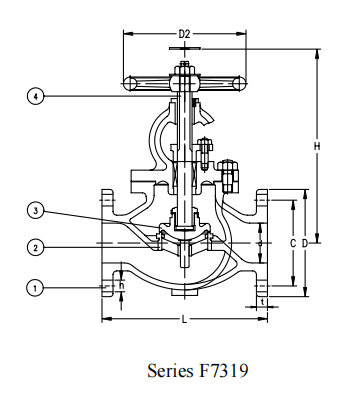

Drawing:

Dimensions:

Size	L	D	C	No.	h	t	H	D₂	Kg
50	220	155	120	4	19	20	285	160	19.9
65	270	175	140	4	19	22	310	200	28.7
80	300	185	150	8	19	22	320	200	32.4
100	350	210	175	8	19	24	370	250	48.7
125	420	250	210	8	23	24	420	280	73.1
150	490	280	240	8	23	26	470	315	104
200	570	330	290	12	23	26	555	355	162
250	740	400	355	12	25	30	680	450	304
300	840	445	400	16	25	32	770	500	458
