JIS 10K Cast Steel Angle Valve

10K cast steel angle valve features reinforced steel construction with superior toughness and corrosion resistance compared to cast iron types. Its optimized angular flow structure minimizes fluid loss and delivers reliable long-term sealing performance.

Overview

Application:It is widely applied for medium-pressure pipeline cut-off and regulation at corner positions of marine and offshore systems. Suitable for harsh working conditions with temperature fluctuation and weak corrosive media that require high structural stability.

Material Specification:

Part No.	Part Name	Material	Material Code
1	Body	Cast Steel	SC46
2	Seat	Stainless Steel	SCS2
3	Disc	Stainless Steel	SCS2
4	Stem	Stainless Steel	SUS403

Technical Specification:

Test Pressure MPa [kgf/cm2]
Body	2.06 [21.0]
Seat	1.51 [15.4]

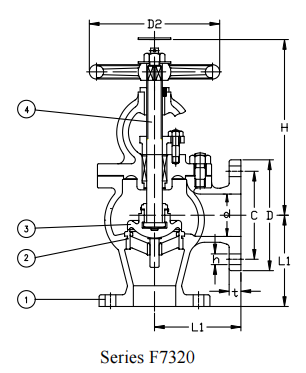

Drawing:

Dimensions:

Size	L	D	C	No.	h	t	H	D₂	Kg
50	120	155	120	4	19	16	240	160	16.3
65	130	175	140	4	19	18	260	200	23
80	140	185	150	8	19	18	265	200	25.3
100	160	210	175	8	19	18	300	250	37
125	180	250	210	8	23	20	350	280	57.1
150	205	280	240	8	23	22	400	315	77.2
200	230	330	290	12	23	22	480	355	116
250	290	400	355	12	25	24	535	400	188
300	320	445	400	16	25	24	610	450	256
