JIS 10K Cast Iron Gate Valve

JIS 10K cast iron gate valve adopts reinforced thick cast iron body to upgrade pressure bearing capacity compared with 5K low pressure type. It is fitted with bronze disc and seat pair to achieve abrasion resistance and tight sealing during frequent on-off operation.

Overview

Application: It is widely applied to medium-pressure ballast water, cooling water and drainage pipelines on various ships and marine vessels. Suitable for general industrial piping systems that only require complete cut-off without flow throttling regulation.

Material Specification:

Part Name	Material	Code
1-Body	Cast Iron	FC20
2-Seat	Bronze	BC6
3-Disc	Bronze	BC6
4-Stem	Brass	C3771BD

Technical Specification:

Nominal Diameter	Test Pressure MPa (kgf/cm²)
Nominal Diameter	Body	Seat
400 or less	2.06 [21]	1.57 [15.4]
450 to 500	1.77 [18]	1.29 [13.2]

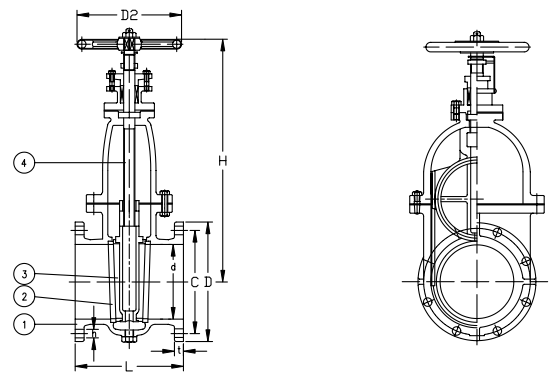

Drawing:

Gate valves1.png

Dimensions:

Size	L	D	C	No.	h	t	H	D₂	Kg
50	200	155	120	4	19	20	300	140	19.4
65	220	175	140	4	19	22	350	160	27.6
80	230	185	150	8	19	22	400	180	33
100	250	210	175	8	19	24	450	200	45.8
125	270	250	210	8	23	24	520	224	65.9
150	290	280	240	8	23	26	580	250	86
200	320	330	290	12	23	26	700	315	136
250	380	400	355	12	25	30	840	400	230
300	440	445	400	16	25	32	960	450	331
350	500	490	445	16	25	34	1050	500	433
400	590	560	510	16	27	36	1150	560	597
450	640	620	565	20	27	38	1260	600	704
500	710	675	620	20	27	40	1380	680	901
