JIS 10K Cast Iron Angle Valve

JIS 10K cast iron angle valve features a thickened reinforced cast iron body with upgraded pressure resistance, suitable for 1.0MPa medium-pressure working conditions. Its 90° angle flow design minimizes flow loss and ensures stable sealing and durable mechanical performance.

Overview

Application:It is widely used for medium-pressure hot water, circulating water and low-pressure steam pipelines in factories and heating systems. Ideal for corner installation and limited-space piping that requires reliable medium-pressure shut-off control.

Material Specification:

Part Name	Material	Code
1-Body	Cast Iron	FC20
2-Seat	Bronze	BC6
3-Disc	Bronze	BC6
4-Stem	Brass	C3771BD

Technical Specification:

Nominal Diameter	Test Pressure MPa (kgf/cm²)
Nominal Diameter	Body	Seat
200 or less	2.06 [21]	1.51 [15.4]
250 or more	1.47 [15]	1.08 [11]

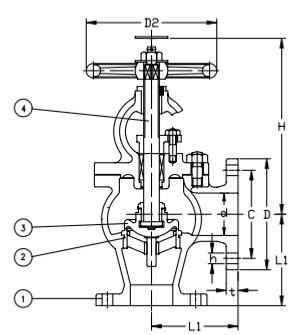

Drawing:

JIS 10K Cast Iron Angle ValveDRAWING.jpg

Dimensions:

Size	L	D	C	No.	h	t	H	D₂	Kg
50	120	155	120	4	19	20	255/255	160	18.2
65	130	175	140	4	19	22	270/260	200	25.4
80	140	185	150	8	19	22	275/270	200	27.4
100	160	210	175	8	19	24	315/305	250	40.6
125	180	250	210	8	23	24	360/350	280	69.9
150	205	280	240	8	23	26	405/390	315	81
200	230	330	290	12	23	26	475/450	355	125
250	290	400	355	12	25	30	570	450	211
300	320	445	400	16	25	32	645	500	293
350	360	490	445	16	25	34	710	560	386
400	420	560	510	16	27	36	790	630	544
