JIS 10K Bronze Hose Globe Valve

JIS 10K bronze hose globe valve features thickened cast bronze body and reinforced bolted bonnet, supporting stable medium-pressure operation far beyond the load limit of standard 5K hose globe valves. Its globe disc design enables precise flow fine-tuning, paired with lockable quick hose coupling for leak-proof connection and long-term saltwater anti-corrosion performance.

Overview

Application:Specially used for medium-pressure fire water, deck washdown and auxiliary ballast pipelines on tankers, cargo vessels and offshore platforms where 5K low-pressure valves cannot meet system pressure requirements. It is widely applied in shipbuilding and marine fire protection projects that demand adjustable flow control and durable corrosion resistance for pressurized hose outlet pipelines.

Material Specification:

Part Name	Material	Code
1-Body	Bronze	BC6
2-Disc	Bronze	BC6
3-Stem	Brass	C3771BD
4-Coupling	Bronze	BC6

Technical Specifications:

Nominal Pressure		10K
Hydraulic Inspection	Body	24 kg
Hydraulic Inspection	Seat	12 kg

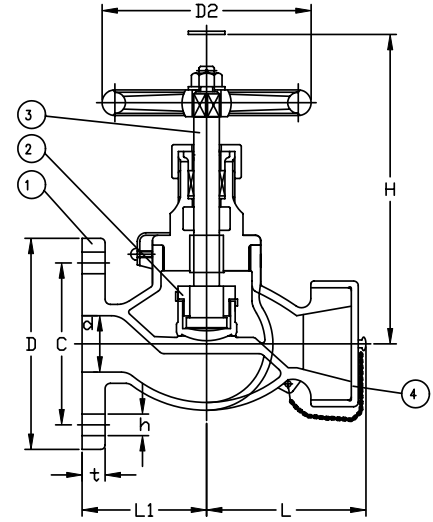

Drawing:

JIS 10K Bronze Hose Globe Valve drawing.png

Dimensions:

Flange	Size	L	L₁	D	C	No.	h	t	H	D₂	D₃
10K	15	73	55	95	70	4	15	12	129	80	M42×2
	25	83	65	125	90	4	19	14	161	125	M42×2
	40	133	90	140	105	4	19	16	193	140	M52×2
	50	165	110	155	120	4	19	16	271	160	M64×2
	65	200	135	175	140	4	19	18	298	200	M80×2
