JIS 10K Bronze Hose Angle Valve
JIS 10K bronze hose angle valve features a thickened reinforced cast bronze body that stably withstands 1.0MPa medium pressure, paired with integrated lockable quick hose coupling for leak-free hose connection. Its ergonomic handwheel and upgraded internal sealing structure deliver tighter shut-off performance and superior saltwater corrosion resistance compared to standard 5K angle valves.
Overview
Application:Specially deployed for medium-pressure fire water, washdown and ballast auxiliary pipelines on cargo vessels, tankers and offshore rigs where 5K low-pressure valves fail to meet system pressure requirements. It is widely adopted in shipbuilding, marine fire protection and coastal industrial piping projects that demand reliable medium-pressure hose outlet control with long-term anti-corrosion durability.
Material Specification:
| Part Name | Material | Code |
| 1-Body | Bronze | BC6 |
| 2-Disc | Bronze | BC6 |
| 3-Stem | Brass | C3771BD |
| 4-Coupling | Bronze | BC6 |
Technical Specifications:
| Nominal Pressure | 10K | |
| Hydraulic Inspection | Body | 24 kg |
| Seat | 12 kg | |

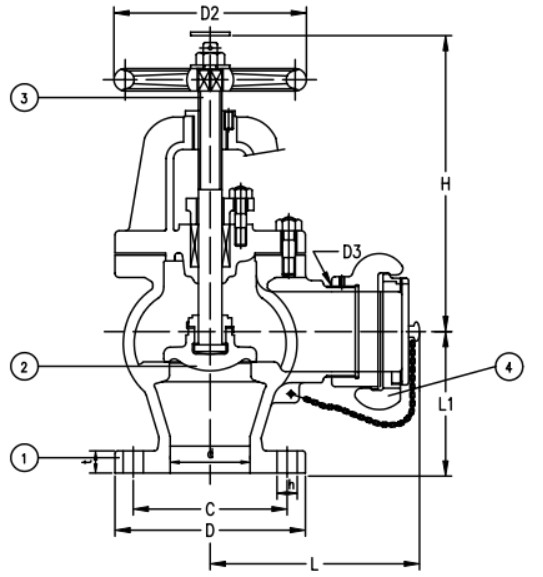

Drawing:
Dimensions:
| Flange | Size | L | L₁ | D | C | No. | h | t | H | D₂ | D₃ |
| 10K | 15 | 73 | 70 | 95 | 70 | 4 | 15 | 12 | 129 | 80 | M42×2 |
| 25 | 83 | 85 | 125 | 90 | 4 | 19 | 14 | 161 | 125 | M42×2 | |
| 40 | 124 | 100 | 140 | 105 | 4 | 19 | 16 | 193 | 140 | M52×2 | |
| 50 | 160 | 120 | 155 | 120 | 4 | 19 | 16 | 271 | 160 | M64×2 | |
| 65 | 180 | 130 | 175 | 140 | 4 | 19 | 18 | 298 | 200 | M80×2 |
