GB/T 593-1993 Type L/LS/T/TS Flanged Packed Cock | 3-Way Bronze & Cast Iron Marine Plug Valve

GB/T593-1993 L/LS/T/TS Type Flanged Bronze,cast iron Packed Cocks

Our GB/T 593-1993 Type L/LS/T/TS flanged packed cock features a 3-way design with L-port or T-port flow patterns, manufactured to Chinese marine standards in bronze or cast iron with flanged ends and reliable packed gland sealing. Unlike straight-through 2-way cocks, this multi-port valve enables flow diversion, merging or directional switching with a simple 90-degree rotation, providing versatile flow control functionality that replaces multiple 2-way valves in a single compact unit.

Overview

Application: Primarily used on ships and offshore platforms for flow direction switching, medium diversion or confluence in fuel oil systems, cooling water circuits, ballast water management and other marine piping networks where multiple flow paths need to be controlled from a single valve location. Also specified in shipbuilding projects for compact engine room installations and hydraulic systems where space is limited and flexible flow routing is required, reducing the total number of valves and simplifying overall piping layout complexity.

Material Specification:

Parts Name	Material
Parts Name	Name	Marks
Bronze cock main body	Cast tin bronze	ZCuSn10Zn2 or ZCuSn5Pb5Zn5
Cast iron cock main body	Cast iron	HT200
Disc	Cast tin bronze	ZCuSn10Zn2 or ZCuSn5Pb5Zn5

Technical Specifications:

Pattern	Name	Nominal Pressure PN (MPa)	Nominal Diameter DN (mm)	Available Medium
L, LS	L-type 3-way packed plug cock	0.6	20 ~ 80	Sea water, fresh water, lubricant, fuel oil
T, TS	T-type 3-way packed plug cock	0.6	20 ~ 80	Sea water, fresh water, lubricant, fuel oil

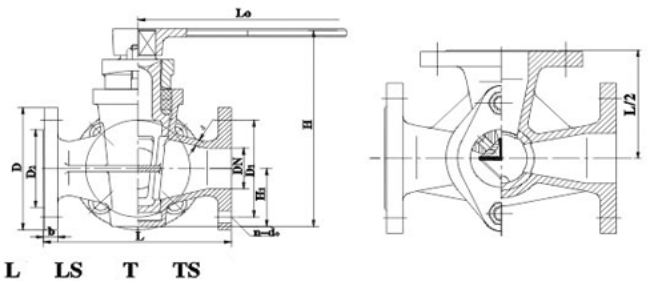

Drawing:

Dimensions:

L/T Type bronze packed plug cocks

DN	Frame dimension			Thickness	flange					bolt		Handle	Weight (kg)
DN	L	H	H₁	δ	D	D₁	D₂	d₀	b	n	Th.	Lo	Type L	Type T
20	145	139	40	4	95	68	48	13	12	4	M12	125	3.5	3.4
25	155	149	41	4	105	73	56	13	13	4	M12	140	4.2	4.1
32	165	168	48	5	115	83	64	15	13	6	M14	160	5.3	5.2
40	190	192	56		125	93	74	15	14	6	M14	180	8.6	8.5
50	205	243	65		135	103	84	15	14	6	M14	230	11.4	11.3
65	225	285	80	6	155	123	104	15	14	6	M14	250	15.6	15.4
80	245	324	96	6	170	138	118	15	14	6	M14	320	21.6	21.2

L/T Type iron packed plug cocks

DN	Frame Dimension			Thickness	Flange					Bolt		Handle	Weight (kg)
DN	L	H	H₁	δ	D	D₁	D₂	d₀	b	n pcs.	Th	L₀	Type L	Type T
20	145	141	42	7	95	68	48	13	14	4	M12	125	3.85	3.79
25	155	151	43		105	73	56	13	14	4	M12	140	4.9	4.8
32	165	170	50		115	83	64	15	15	6	M14	160	5.7	5.6
40	190	193	57		125	93	74		16			180	8.4	8.3
50	205	245	67		135	103	84		16			230	12	11.8
65	225	286	81	8	155	123	104		15			250	16.7	16.3
80	245	328	100	8	170	138	118		15	8		320	21.8	21.3

LS/TS Type bronze packed plug cocks

DN	Frame Dimension			Thickness	Flange					Bolt		Handle	Weight (kg)
DN	L	H	H₁	δ	D	D₁	D₂	d₀	b	n pcs.	Th	L₀	Type L	Type T
20	150	139	40	4	90	65	50	11	12	4	M10	125	3.5	3.4
25	160	149	41	4	100	75	60	11	14		M10	140	4.2	4.1
32	180	168	48	5	120	90	70	14	15		M12	160	5.9	5.8
40	200	192	56		130	100	80		16		M12	180	9.4	9.3
50	230	243	65		140	110	90		17		M12	230	12.6	12.5
65	290	285	80	6	160	130	110		17		M12	250	17.1	16.9
80	310	324	96	6	190	150	128	18	19		M16	320	23.6	23.3

LS/TS Type iron packed plug cocks

DN	Frame Dimension			Thickness	Flange					Bolt		Handle	Weight (kg)
DN	L	H	H₁	δ	D	D₁	D₂	d₀	b	n pcs.	Th	L₀	Type L	Type T
20	150	141	42	7	90	65	50	11	14	4	M10	120	3.9	3.8
25	160	151	43		100	75	60	11	14		M10	140	4.9	4.8
32	180	170	50		120	90	70	14	16		M12	160	5.8	5.7
40	200	193	57		130	100	80					180	9.1	9
50	230	245	67		140	110	90					230	12.4	12.2
65	290	286	81	8	160	130	110					250	17.7	17.3
80	310	328	100	8	190	150	128	18	18		M16	320	23.9	23.4
