GB/T584-1999 Type B/BS Flanged Stop Valve

GB/T 584-1999 Type B/BS flanged stop valve features a 90-degree angle body design manufactured in strict compliance with Chinese national shipbuilding standards, providing reliable shut-off performance while changing flow direction in marine piping systems. Equipped with a precision-machined disc and robust stem assembly, this angle valve delivers tight sealing and smooth operation, specifically engineered for space-saving installation at pipeline corners and directional changes.

Overview

Application: Widely installed on commercial vessels, cargo ships, tankers and offshore platforms where pipeline direction changes are required, controlling seawater, freshwater, fuel oil and lubricating oil flow at 90-degree piping corners. Also used in shipbuilding yards, marine engineering projects and port facilities where GB-standard angle valves are needed for space-efficient pipeline layout and flow regulation at directional transitions.

Material Specificaton:

Parts Name	Material
Parts Name	Name	Marks
Body, Cover	Cast steel	ZG230-450
Disc	High-quality Carbon steel	Steel 25
Stem	Stainless steel	2Cr13
Disc seal ring	Stainless steel	H2Cr13

Technical Specification:

Model	Nominal Pressure PN (MPa)	Nominal Diameter DN (mm)	Available Medium
Type B	1	65 ~ 150	Fresh water, Lubricant oil, Fuel oil, steam of 300 °C and under.
	1.6	125 ~ 150
	2.5	20 ~ 150
	4	65 ~ 100	Fresh water, Lubricant oil, Fuel oil, steam of 400 °C and under.
	6.4	20 ~ 50
Type BS	1	200 ~ 300	Fresh water, Lubricant oil, Fuel oil, steam of 300 °C and under.
	1.6	100 ~ 250
	2.5	20 ~ 150
	4	65 ~ 100	Fresh water, Lubricant oil, Fuel oil, steam of 400 °C and under.
	6.4	20 ~ 50

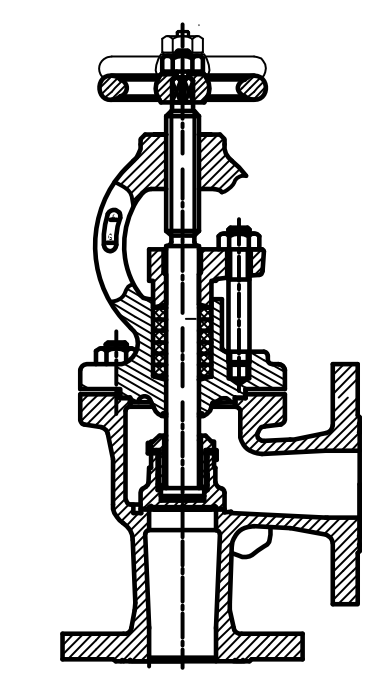

Drawing:

Dimensions:

PN1.0、1.6、2.5MPa B Type Elementary Dimensions(Unit: mm)

Nominal Pressure PN (MPa)	Nominal Diameter DN	Frame dimension			Wall Thickness	Flange					Bolt		Hand wheel		Lift Range	Weight (kg)
		Frame dimension			Wall Thickness	Flange					Bolt		Hand wheel		Lift Range	Weight (kg)
		L	H	H₁	t	D	D₁	D₂	d₀	b	n (pcs)	Thread	D₀	S	m	Type B
1	65	115	277	115	6	155	123	104	15	14	6	M14	140	12	18	12.9
	80	125	304	125	7	170	138	118			8		160	14	24	17.9
	100	150	325	135	8	190	158	138			8		180	14	35	24
	125	175	366	155	8	215	183	164			10		200	17	44	33.7
	150	180	415	160	9	240	208	190			12		200	17	57	41.9
1.6	125	175	405	155	8	225	187	168	17	15	10	M16	250	22	44	38.9
1.6	150	180	452	160	9	255	217	196	17	15	12	M16	280	24	57	51.7
2.5	20	75	203	75	6	95	68	48	13	11	4	M12	80	8	7	4.4
	25	80		80		105	73	56	13	12	4	M12	80	8	7	5
	32	85	216	85		115	83	64	15	13	6	M14	100	9	9	6.1
	40	90	236	90	7	125	93	74					120	11	11	7.2
	50	95	258	95		135	103	84					140	12	14	12.7
	65	115	301	115		170	132	110	17	15	8	M16	14	18	18.8	18.9
	80	125	321	125		185	147	126		16	8		17	24	24.8	22.7
	100	150	368	135	8	205	167	146		16	10		250	22	35	31.3
	125	175	432	155	9	240	196	172	21	19	10	M20	24	44	52.2	47.9
	150	200	484	175	9	270	226	200	21	20	12	M20	320	27	57	60.3

PN4.0, 6.4MPa B-type Dimensions (mm)

PN (MPa)	DN	Frame dimension			Thickness	flange								Bolt		Hand wheel		Weight (kg)
		Frame dimension			Thickness	flange								Bolt		Hand wheel
		L	H	H₁	t	D	D₁	D₂	D₃	D₄	F	d₀	b	n	Th.	D₀	S
4	65	125	374	125	8	175	137	118	110	94	3	17	18	8	M16	250	22	32.9
	80	140	394	130	9	190	152	130	121	105	3	17	18	8	M16	250	22	36.7
	100	165	416	145	9	225	181	157	150	128	4	21	21	10	M20	280	24	44.7
6.4	20	80	243	85	7	105	73	58	51	35	3	13	13	6	M12	100	9	6.5
	25	85	253	90		115	83	66	58	42		15	15		M14	100	9	7.6
	32	90	281	95		125	93	74	66	50		15	17		M14	120	11	9.3
	40	105	310	110		145	107	84	76	60		17	19		M16	160	14	16.4
	50	110	323	115	8	155	117	96	88	72		17	20		M16	180	14	20.5

PN1.0、1.6、2.5MPa BS Type Elementary Dimensions(Unit: mm)

PN (MPa)	DN	Frame dimension			Thickness t	Flange					Bolt		Hand wheel		Lift Range	Weight(kg)
(MPa)		Frame dimension				Flange					Bolt		Hand wheel
(MPa)		L	H	H1		D	D₁	D₂	d₀	b	n	Th.	D₀	S
1	200	275	543	275	10	340	295	268	22	24	8	M20	360	27	68	104
	250	325	623	325	11.5	395	350	320		26	12		450	32	80	160
	300	375	696	375	13	445	400	370		26	12		500	36	100	216
	100	175	368	175	8.0	220	180	158	18	22	8	M16	250	22	35	33.2
	125	200	405	200	8.0	250	210	184	18	22		M16	250	22	44	46.1
	150	225	452	225	9	285	240	212	22	24		M20	280	24	57	62.1
	175	225	505	225	10	315	270	242					360	27	60	87.8
	200	275	565	275	10	340	295	268			12		450	32	68	116
	250	325	646	325	11.5	405	355	320	26	26	12	M24	500	36	80	173
2.5	20	95	203	95	6	105	75	58	14	16	4	M12	80	8	7	5.4
	25	100	203	100		115	85	68	14	16		M12	80	8	7	6.1
	32	105	216	105		140	100	78	18	18		M16	100	9	9	8.3
	40	115	236	115	7	150	110	88		18			120	11	12	10.9
	50	125	258	125		165	125	102		20			140	12	15	14.2
	65	145	301	145		185	145	122		22	8		160	14	19	20.6
	80	155	321	155	8	200	160	133		24			200	17	23	25.8
	100	175	368	175	8	235	190	158	22	24		M20	250	22	28	37.8
	125	200	432	200	9	270	220	184	26	26		M24	280	24	35	58.1
	150	225	484	225	9	300	250	212	26	28		M24	320	27	42	73.7

PN4.0, 6.4MPa BS-type Dimensions (mm)

PN (MPa)	DN	Frame dimension			thickness	Flange								Bolt		hand wheel		lift range	Weight (kg)
PN (MPa)	DN	L	H≈	H₁	thickness	D	D₁	D₂	D₃	D₄	F	d₀	b	n	Th.	D₀	S (Bolt)	m	Weight (kg)
4	65	145	374	145	8	185	145	122	110	94	3	18	22	8	M16	250	22	19	36.4
	80	155	394	155	9	200	160	133	121	105		18	24		M16	250	22	23	40.3
	100	175	416	175	9	235	190	158	150	128		22	24		M20	280	24	28	51.5
6.4	20	115	243	115	7	130	90	68	58	35		18	22	4	M16	100	9	7	8.1
	25	115	253	130		140	100	78	66	42		18	24		M16	100	9	7	10
	32	130	281	130		155	110	78	66	50		22	24		M20	120	11	9	12.2
	40	130	310	150		170	125	88	76	60			26			160	14	12	20.6
	50	150	323	150	8	180	135	102	88	72			26			180	14	15	25.8
